DS400D
400W grow light bar for top lighting
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 1,120 µmol/s
- Input power
- 400 W
- Flowering footprint
- 2ft x 4ft
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.

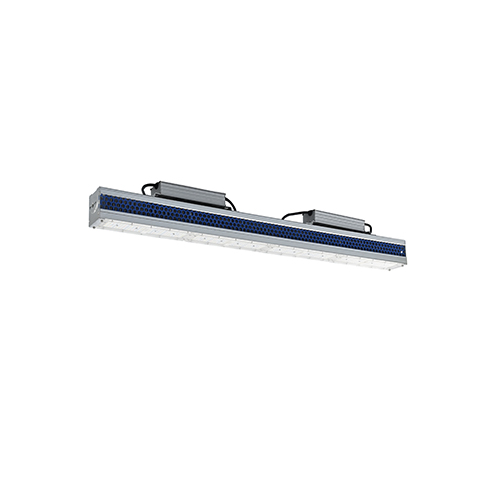

What the DS400D is for
A 400W linear top light in a 42-inch bar. 1,120 µmol/s over a 2ft × 4ft flowering footprint, in a form factor that lets you build a lighting plan from strips rather than panels — useful where bench widths are irregular, where a panel would shade a trellis, or where you want to add rows incrementally as a room comes online.
What you get
- 1,120 µmol/s, 400W at 277VAC.
- Linear form factor: 42.13" × 3.35" × 5.51", 7.2kg — lays out on any bench pitch without the fixed aspect ratio of a panel.
- 2ft × 4ft flowering, 3ft × 5ft vegetative coverage, 120° beam.
- 0-100% dimmer knob, 120-277VAC or 277-480VAC input, power factor above 0.95.
- Passive thermal management to 40°C / 104°F ambient — no moving parts over the canopy.
- Mounting height 6-24 inches above canopy.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

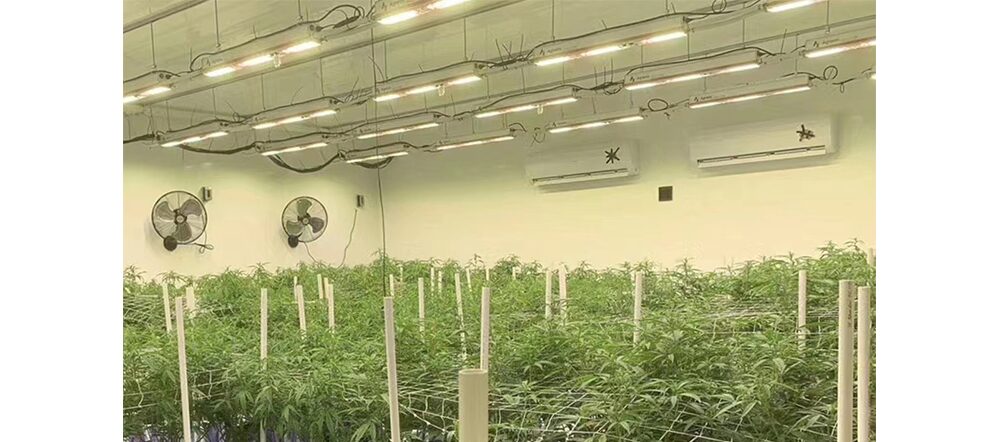

On the rack
Installed in a working commercial grow. Rated coverage: Flower 2ft x 4ft; Veg 3ft x 5ft.
Specifications
- Power
- 400 W
- PPF
- 1,120 µmol/s
- Coverage
- Flower 2ft x 4ft; Veg 3ft x 5ft
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming
- 0-100% dimmer knob
- Dimensions
- 42.13"L x 3.35"W x 5.51"H (1070 x 85 x 140 mm)
- Weight
- 7.2 kg
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 267W HPS/MH (implausible, see notes)
- Diode brands
- Samsung & Osram
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
PPFD distribution maps available with your quote.
Before you spec it
When is a bar better than a panel fixture?
When the room does not divide neatly into 4ft × 6ft or 4ft × 8ft rectangles. Bars let you match odd bench widths, run light down a row without over-lighting the aisle, and phase a build room by room. A panel like the TF 1000W PRO is fewer fittings and fewer hangs for a standard bench; bars are more flexible on an awkward floor plan.
How many DS400D bars replace one panel fixture?
By photons: 1,120 µmol/s each, so roughly two and a half bars match the 2,800 µmol/s of a TF 1000W PRO — but they cover 2ft × 4ft each rather than one 4ft × 6ft rectangle, so the practical answer depends on your bench geometry. Send a floor plan and target PPFD.
DS400D or DS120S?
The DS120S is a 120W bar for multi-tier racks at close pitch. The DS400D is a 400W single-tier top light. Same length, very different intensity.
Does it dim across the range?
Yes, 0-100% at the knob. Channel arrangement and external-control wiring for the bar range should be confirmed with us before you specify a controller.
