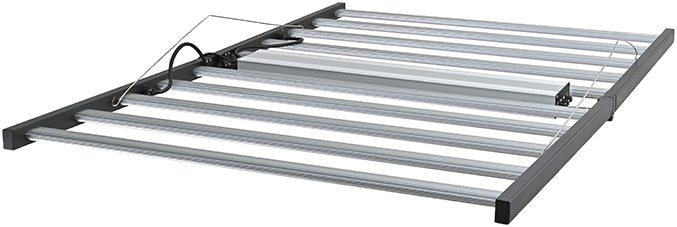

TF 1000W PRO
Foldable full-spectrum + UV/IR, 3-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 2,800 µmol/s
- Input power
- 1000 W
- Flowering footprint
- 4ft x 6ft
- Ingress protection
- IP44
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
Coverage & PPFD
Rated flowering footprint, 4 × 6 ft. Both readings are µmol/m²/s measured 1 ft from canopy (mounting range 6-24 in). The shading illustrates centre-to-edge falloff; it is not a measured grid. A full PPFD map at your mounting height comes with the quote.

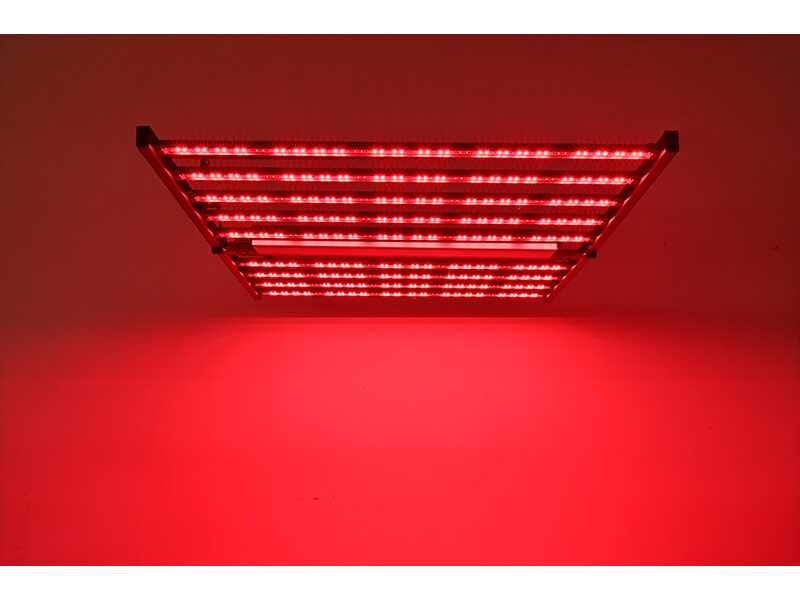

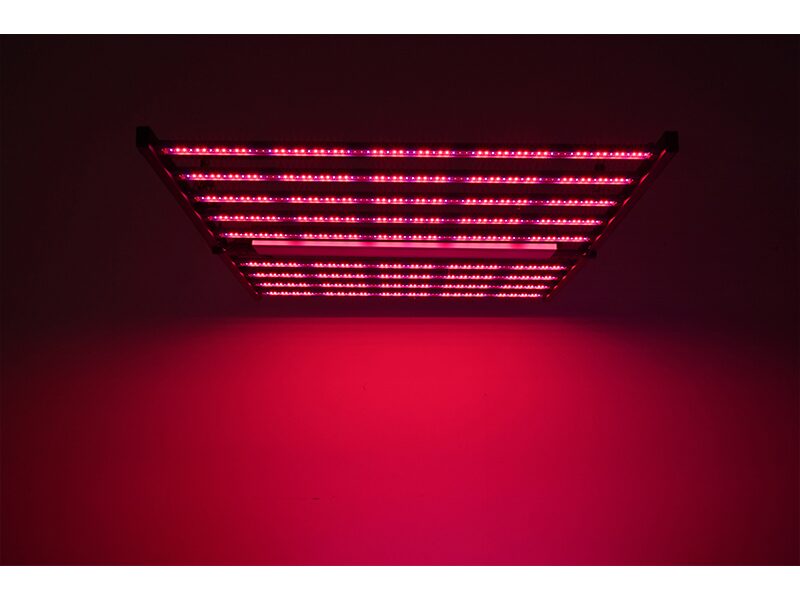

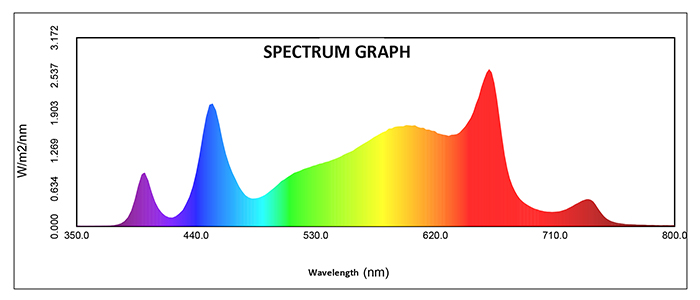

3-channel spectrum
Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the TF 1000W PRO is for
The volume fixture of the range. 2,800 µmol/s over a 4ft × 6ft flowering footprint, from 3,460 diodes — Samsung LM281B full spectrum plus dedicated 460nm, 660nm, UV and IR. Three-channel dimming, a folding frame that ships one per carton, and a 1,500W HPS replacement profile. If you are standardising a multi-room facility on one SKU, this is usually it.
What you get
- 2,800 µmol/s, 1,000W at 277VAC; 866 µmol/m²/s average PPFD at 12 inches.

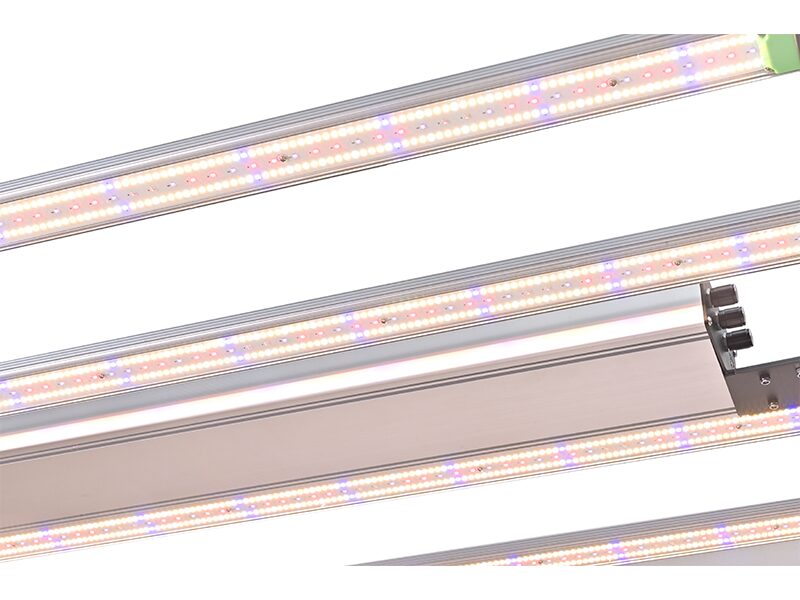

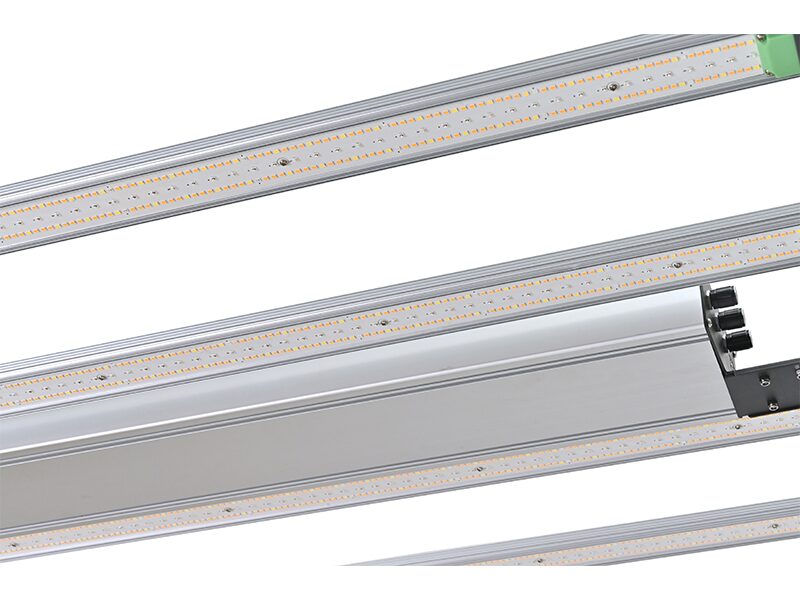

- 3,460 diodes: Samsung LM281B full spectrum with 460nm blue, 660nm deep red, UV and IR.

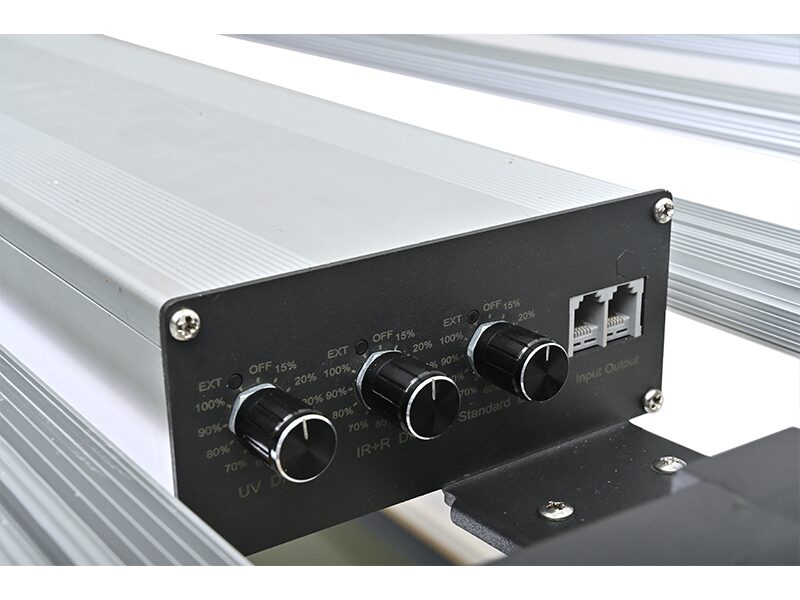

- Three-channel control — full spectrum, red, and UV — each dimmable 0-100% at the fixture or over RJ12 group control.
- 4ft × 6ft flowering, 5ft × 7ft vegetative coverage; micro-reflectors on each bar focus output rather than letting it spill into the aisle.

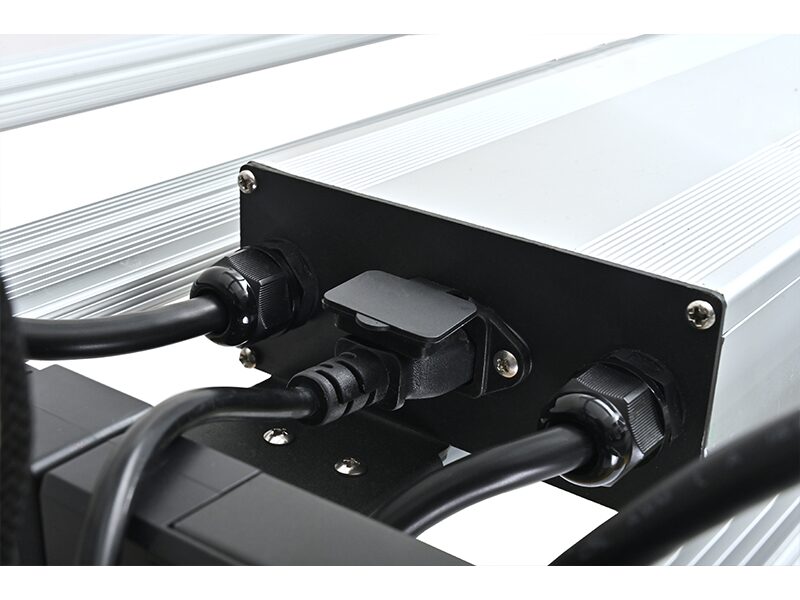

- AC 110-277V input, 3.8A at 277V, UL-listed driver, power factor at or above 0.95.
- Passive thermal management to 40°C ambient, IP44, flicker-free.
- Folds for freight: 1810 × 1120 × 50 mm and 18.24 kg open; ships one per carton at 1140 × 955 × 112 mm, 20.35 kg gross, no bar assembly on site.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

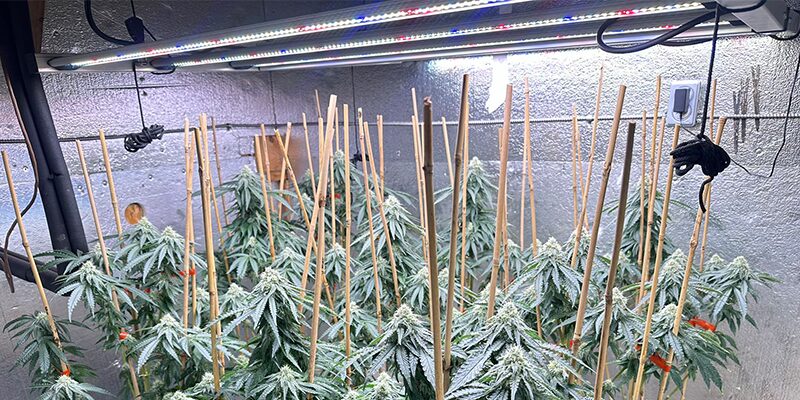

Over a commercial flowering bench
Installed in a working commercial grow. Rated coverage: Flower 4ft x 6ft; Veg 5ft x 7ft.

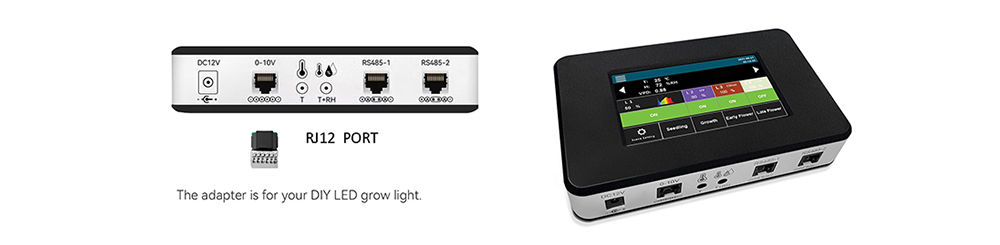

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| TF 1600W PRO | 1600 W | 4,480 µmol/s | 4ft x 8ft | 1,300 µmol/m²/s | View → |
| TF 1200W PRO | 1200 W | 3,360 µmol/s | 4ft x 6ft | 980 µmol/m²/s | View → |
| TF 1000W PRO | 1000 W | 2,800 µmol/s | 4ft x 6ft | 866 µmol/m²/s | this page |
| TF 720W PRO | 720 W | — | — | 624 µmol/m²/s | View → |
Specifications
- Factory model
- LH-DF610-1000
- Power
- 1000 W
- PPF
- 2,800 µmol/s
- Spectrum
- Full spectrum (Samsung LM281B) + 460nm blue + 660nm deep red + UV + IR
- Control channels
- 3
- Coverage
- Flower 4ft x 6ft; Veg 5ft x 7ft
- Input voltage
- AC 110-277V
- Dimming
- Three independent channels: full spectrum / red / UV; RJ12 port for group control
- Dimensions
- 1810 x 1120 x 50 mm
- Weight
- 18.24 kg
- IP rating
- IP44
- Rated lifetime
- 50,000 h
- Warranty
- 5 years
Engineering data
- Replaces
- 1500W HPS/MH
- Average PPFD @ 1 ft
- 866 µmol/m²/s
- Centre PPFD @ 1 ft
- 1,140 µmol/m²/s
- Diode brands
- Samsung LM281B + 460nm + 660nm + UV + IR
- Diode count
- 3460 pcs
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- ≥ 0.95
- Driver
- UL-listed driver
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Packing
- 1 pc/carton, 1140 x 955 x 112 mm, 20.35 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 9.2A
- 120Vac 8.4A
- 220Vac 4.7A
- 240Vac 4.3A
- 277Vac 3.8A
PPFD distribution maps available with your quote.
Before you spec it
TF 1000W PRO or TR 1000W PRO?
Identical LED engine, identical 2,800 µmol/s and 4ft × 6ft footprint. The difference is the frame. The TF folds flat and sits 2 inches deep — the right answer when vertical clearance is tight or you are shipping a container of fixtures. The TR 1000W PRO uses a flexible-arm frame at 4.3 inches deep, which is easier to fit around irrigation runs and trellis hardware in an existing room.
Which model do I pick across the TF range?
How do I run UV without burning the crop?
The UV channel is on its own dimmer, so you set the dose rather than living with whatever the fixture emits. Through the GC001 you can schedule it as a defined daily window with a ramped start. Begin conservative, measure at canopy, and step up across a cycle.
What ships in the carton?
One fixture, four lifting ropes, a 10ft RJ12 net cable, a 10ft AC cable and a manual. The GC001 controller is a separate order.
