Q200 Quantum Board
200W full-spectrum quantum board
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
What the Q200 Quantum Board is for

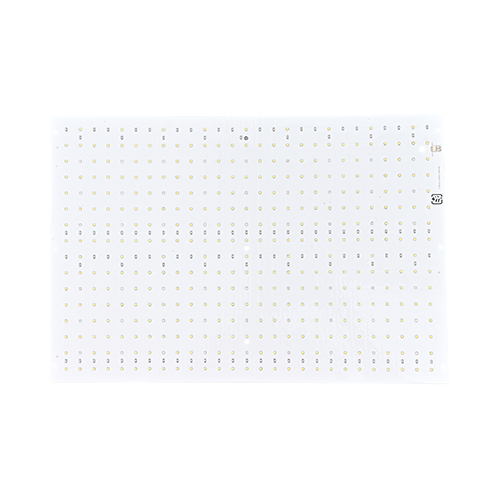

Two boards, 436 Samsung LM301B diodes, 200W — exactly double the Q100 on the same 210mm width and a 580mm length. The middle step of the board range, sized for a propagation bench or a pair of trays where one board is short and a four-panel fixture is too much. Passively cooled, knob-dimmed, hung on wires.
What you get
- 436 Samsung LM301B diodes — precisely twice the Q100's 218, on the same board pitch.
- 580 × 210 × 70mm, covering a longer bench than the single-board Q100 without a step up in height.
- 200W draw, dimmable at the fixture knob.
- Passive design — no fans in a propagation space.
- Predictable scaling: intensity per unit area matches the Q100, so a trial result transfers between the two.

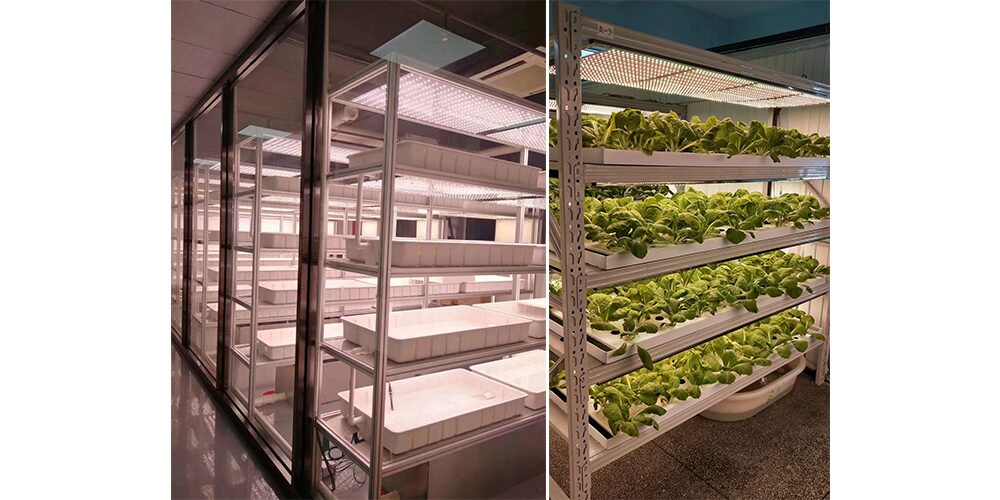

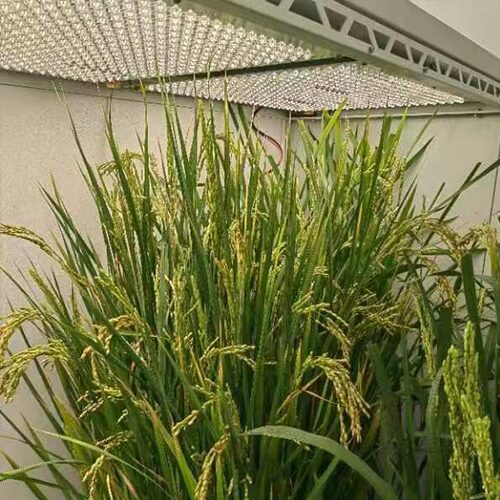

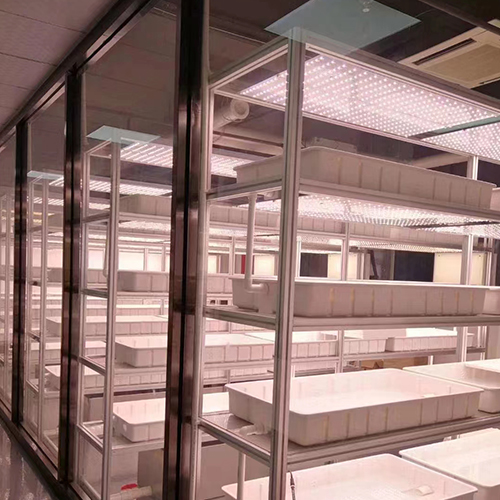

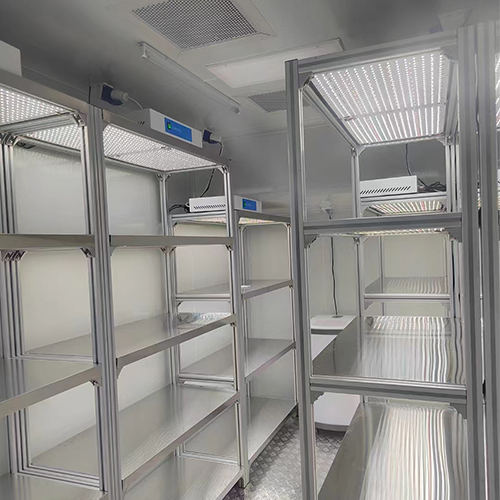

What it looks like in use
At a glance
Specifications
- Power
- 200 W
- Spectrum
- Full spectrum white (Samsung LM301B) with red diodes; no spectrum graph or PPF figure archived
- Control channels
- 1
- Dimming
- Dimmer knob (product image)
- Dimensions
- L580 x W210 x H70 mm
Engineering data
- Diode count
- 436
- Chips
- Samsung LM301B & Osram
- Board layout
- Two boards
PPFD distribution maps available with your quote.
Before you spec it
Is the Q200 just two Q100s?
Photometrically, near enough — the diode count is exactly double on the same board pitch and the same width, so intensity per unit area should be equivalent while the lit area roughly doubles in length. The practical difference is one fixture, one hang and one power drop instead of two.
Q200 or a DS bar?
The Q200 has no published photometrics. For a production rack where you need to hit a PPFD target on paper, take the bar. For a bench or trial area where a board's form factor fits better, take the Q200 and ask us for measured data.
Does it dim and group-control?
It dims at the knob. Group control over RJ12 is not documented for the board range — confirm with us before specifying a GC001 for a room containing boards.
What is the largest board fixture?
The Q400, a four-panel assembly on a two-rail hanger.
