GC001 Group Controller
Group control for up to 100 fixtures
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
What the GC001 Group Controller is for
One touchscreen controller for up to 100 fixtures. The GC001 daisy-chains over RJ12, drives up to four channels per fixture group, schedules three power periods a day with ramped sunrise and sunset, and reads live temperature, humidity and VPD from its own probes — with safety cut-outs that pull output back before a room runs away. It is what turns a set of dimmable fixtures into a controlled facility.
What you get
- Up to 100 fixtures per controller, daisy-chained outlet to inlet over RJ12 — no per-fixture wiring back to a panel.

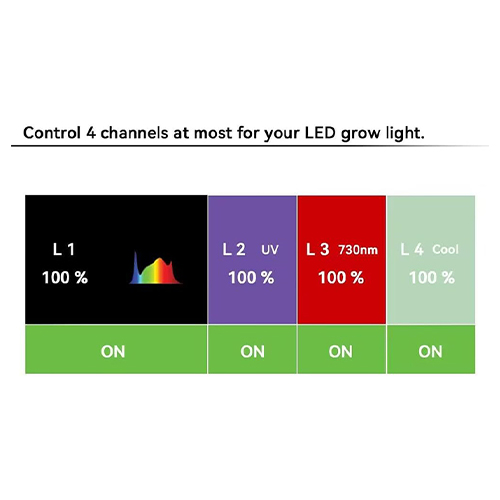

- Four channels per group: full spectrum, UV, 730nm far-red and cool white, each set independently — enough to drive the three-channel TF and TR fixtures with headroom.

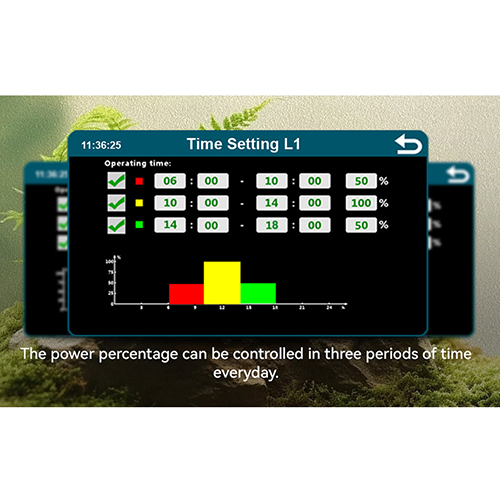

- Three scheduled periods per 24 hours, each with its own output percentage.

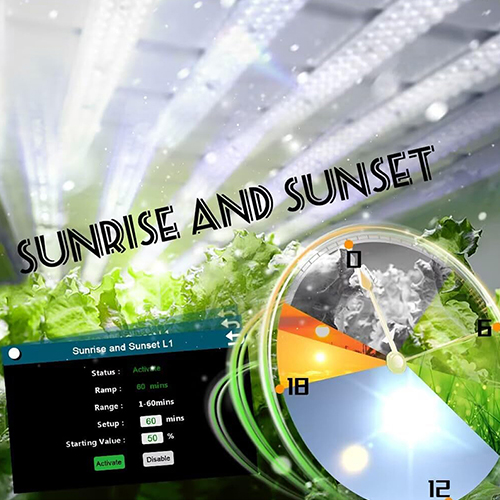

- Sunrise and sunset ramps, settable from 1 to 60 minutes with a defined starting percentage — no hard on/off step at lights-on.
- Live temperature, humidity and VPD on screen from dedicated T and T+RH probes.
- Temperature and dehumidifier safety control — output responds to room conditions rather than running blind.
- Four preset scene modes: Seedling, Growth, Early Flower, Late Flower.

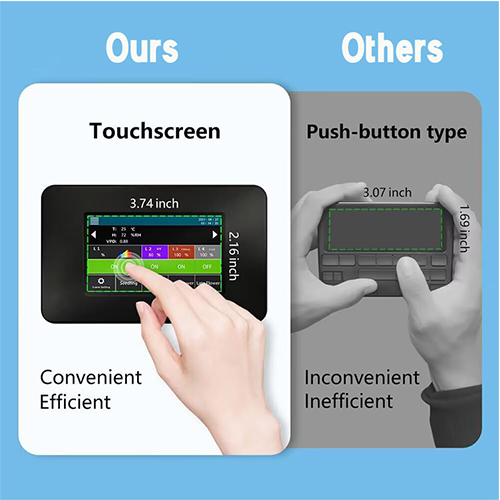

- Colour touchscreen with a 3.74" × 2.16" active area, and RS485-1 / RS485-2 ports alongside the 0-10V RJ12 output.
Specifications
- Spectrum
- n/a - controller
- Control channels
- 4
- Coverage
- Up to 100 fixtures per controller
- Dimming
- Controls light output 0-100% per channel; up to 4 channels per fixture group
Engineering data
- Ports

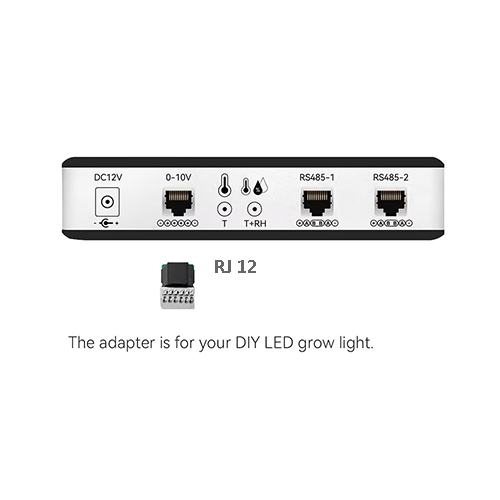

- DC12V, 0-10V (RJ12), T probe, T+RH probe, RS485-1, RS485-2
- Interface
- Colour touchscreen (competitor comparison in the source material contrasts it with push-button controllers)
- Fixtures per controller
- 100
- Scheduling
- 3 timed periods per day, each with its own output percentage
- Sunrise / sunset
- Ramp 1-60 min, settable starting value in %
- Scene modes
- Seedling / Growth / Early Flower / Late Flower
- Sensors
- Temperature probe and temperature+humidity probe; VPD displayed
- Safety
- Temperature and dehumidifier safety control (page copy)
PPFD distribution maps available with your quote.
Before you spec it
Which fixtures does it control?
The TF, TR, DR and SF families all carry the RJ12 group-control port and are designed for it — see the TF 1000W PRO or DR 1500W PLUS. The DS bars and UC120 are dimmable with external control available; confirm the interface with us for your build. The quantum board range is knob-dimmed and is not documented for group control.
Does it ship with the fixtures?
No. The controller is ordered separately — the fixture instruction sheet marks it explicitly as not in the package. Fixtures ship with a 10ft RJ12 net cable, so the chain hardware is there.
Can one controller run a veg room and a flower room?
Yes, as separate groups with separate schedules, inside the 100-fixture limit. That is the normal deployment: group by room or by zone, then set each group's periods, ramps and per-channel levels independently.
What do I do with the temperature and humidity probes?
Place them at canopy in the zone the controller is driving. They feed the on-screen VPD reading and the safety cut-outs — if the room goes out of range, the controller can reduce output rather than leave the lights hammering a room the HVAC has already lost.
How many can I chain before I need a second controller?
100 fixtures. Beyond that, add controllers by zone; the fixtures do not care which controller they sit under.
