DP320 Top Light
320W lensed top-light bar, IP65
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Input power
- 320 W
- Ingress protection
- IP65
What the DP320 Top Light is for
A 320W top-light bar in a sealed aluminium body with a row of lensed optics. It is 1260 mm long and 50 mm wide, rated IP65 and fed by a UL-listed driver on AC 110-277V, so it suits humid greenhouses and plant factories, including medicinal-herb cultivation, where fixtures are washed down or run in high humidity.
What you get
- 320W single-channel full spectrum on Sanan Optoelectronics chips.

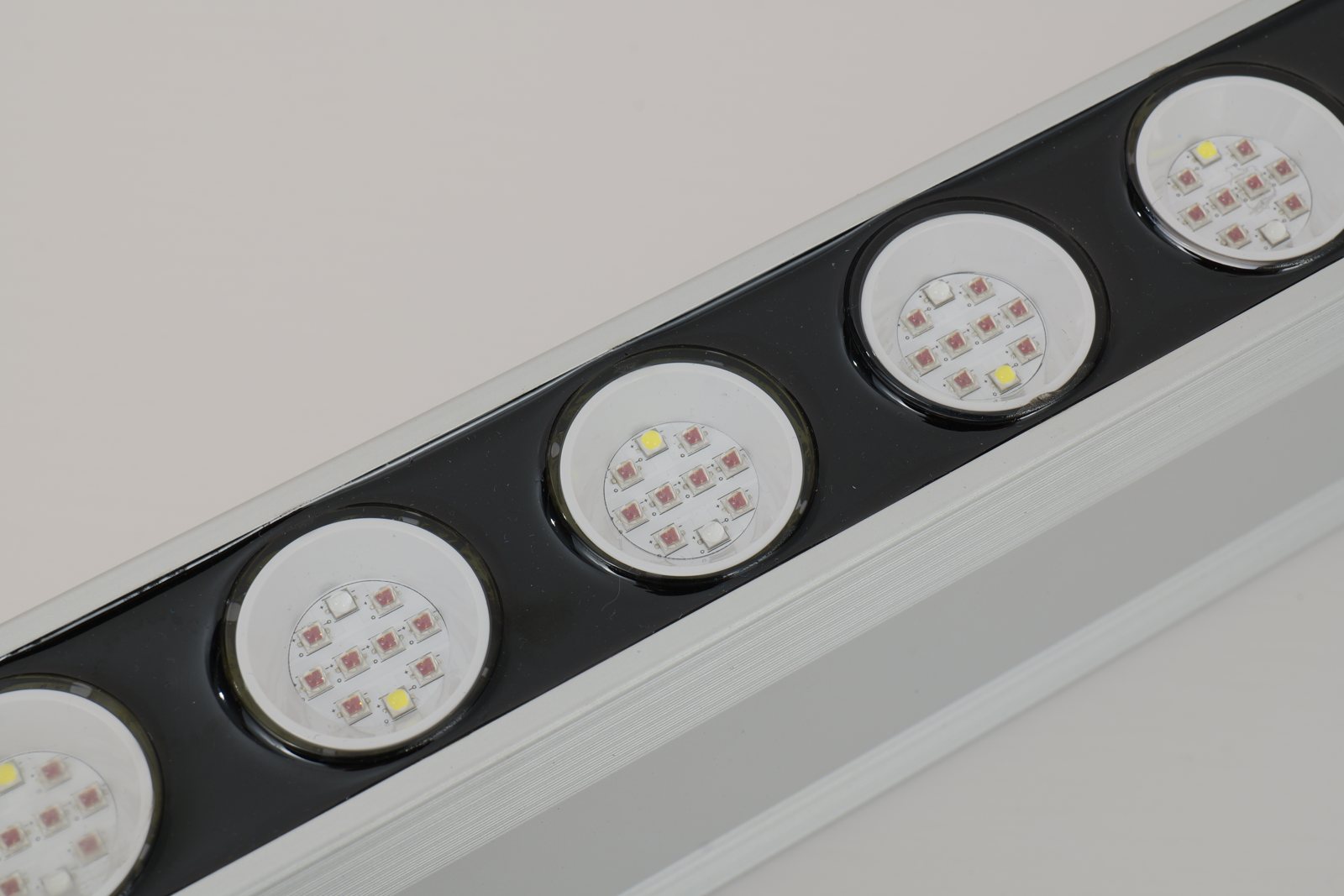

- Lensed optics in a narrow aluminium profile: 1260 × 50 × 110 mm, 7 kg.

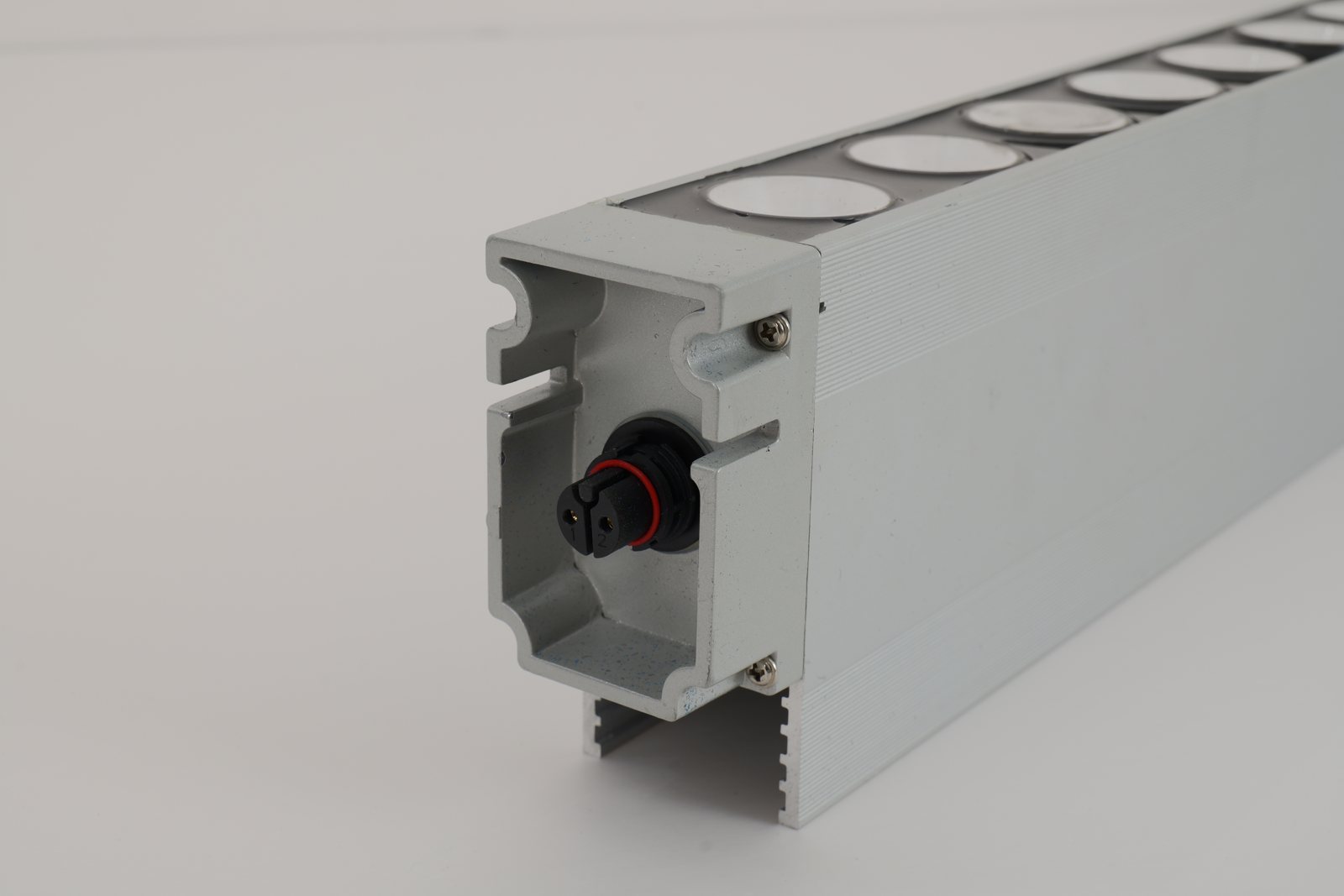

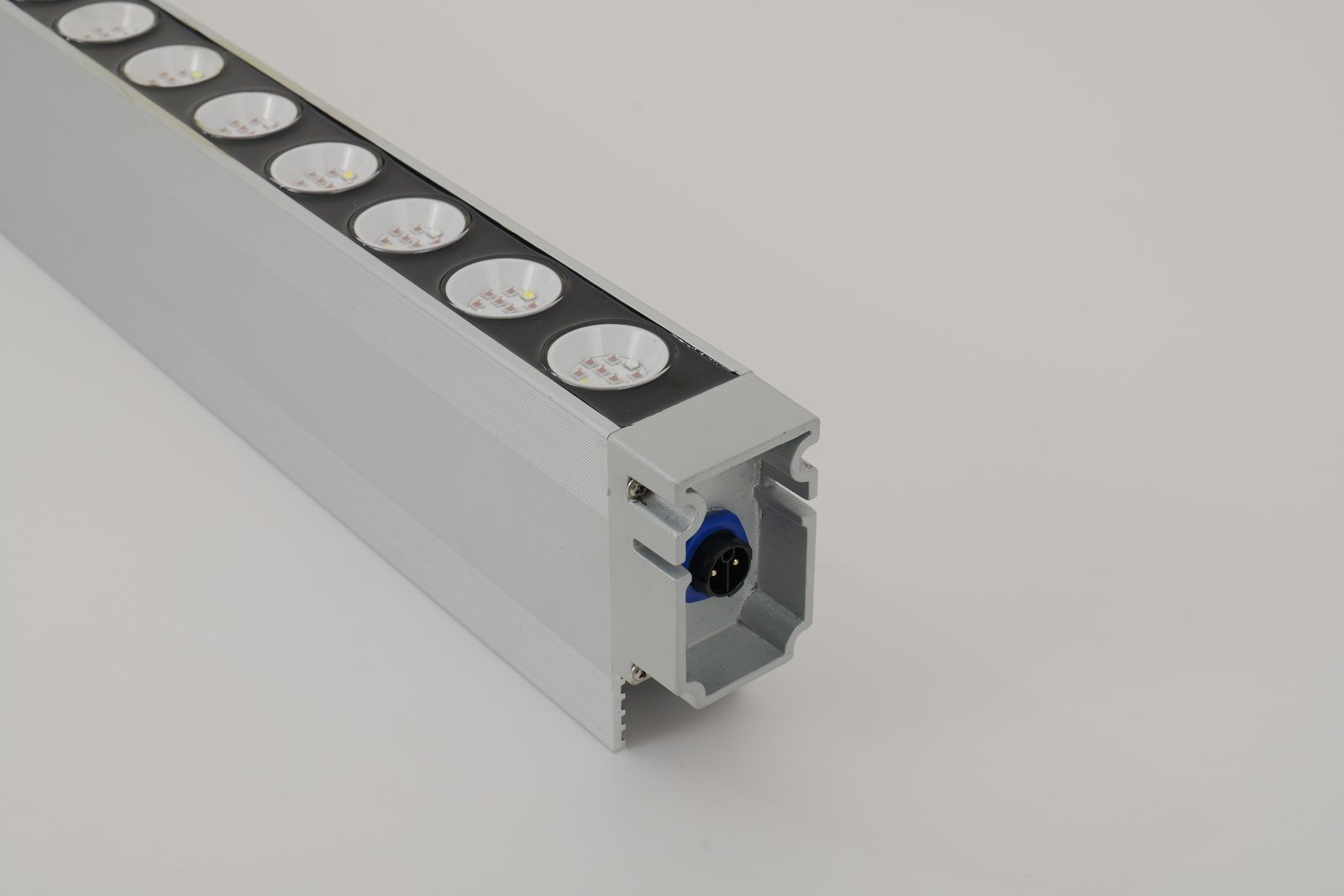

- IP65 with a waterproof quick connector on the power lead.
- UL-listed driver, power factor at or above 0.95, AC 110-277V input.
- Five-year warranty. One fixture per carton, 1460 × 220 × 300 mm.
Specifications
- Factory model
- LH-DP3030ZW
- Power
- 320 W
- Spectrum
- Full spectrum, lensed
- Control channels
- 1
- Input voltage
- AC 110-277V
- Dimming
- Single channel, full spectrum
- Dimensions
- 1260 x 50 x 110 mm
- Weight
- 7 kg
- IP rating
- IP65
- Warranty
- 5 years
Engineering data
- Diode brands
- Sanan Optoelectronics
- Power factor
- ≥ 0.95
- Driver
- UL-listed driver
- Housing
- Extruded aluminium, lensed optics
- Ports
- Waterproof quick connector
- Packing
- 1 pc/carton, 1460 x 220 x 300 mm, 11.23 kg gross
PPFD distribution maps available with your quote.
Before you spec it
Where does a top-light bar fit better than a panel?
In greenhouses, a narrow bar casts less shade on the crop during daylight hours than a wide panel does. It also mounts along existing purlins and wire runs.
Can the spectrum be customised?
Spectrum and power can be adjusted on order quantities. Tell us the crop and stage you are lighting.
Do you have a PPFD map for it?
Not published yet. Send the bay dimensions and mounting height and we will work the layout with you.
