GK Series High Bay
100W / 150W / 200W high bay grow lights
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
What the GK Series High Bay is for
A three-size die-cast aluminium high bay — 100W, 150W and 200W — with an integrated wide-input driver and a spectrum built to order. Where the linear and panel fixtures are engineered around a fixed bench, the GK is engineered around a ceiling: hang it high, cover a wide circle, and specify the diode mix for the crop rather than accept a catalogue spectrum.
What you get
- Three sizes on one platform: GK100 (Ø290 × 160mm, 140 diodes), GK150 (Ø310 × 165mm, 210 diodes), GK200 (Ø400 × 165mm, 280 diodes).
- Spectrum built to order — diode mix specified per crop rather than fixed at the factory.
- Wide-input integrated driver: AC 100-364V, 50/60Hz, matched to each wattage.
- Die-cast aluminium housing, polished and stove-varnished with a frosted texture; transparent cover.
- Light net weights — 2.14kg, 2.73kg and 3.44kg — so ceiling fixing is rarely the constraint in a retrofit.
- Two per carton, packed 340 × 340 × 145mm (GK100) through 410 × 410 × 155mm (GK200).
What it looks like in use

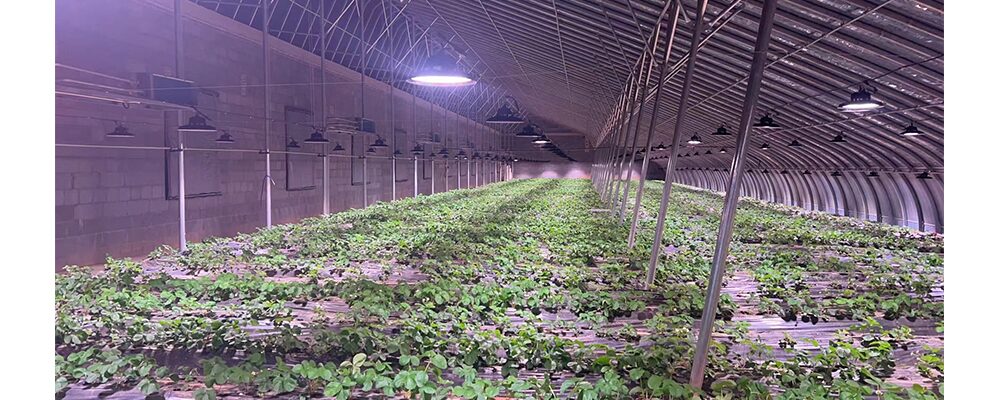

Overhead coverage
Installed in a working commercial grow.

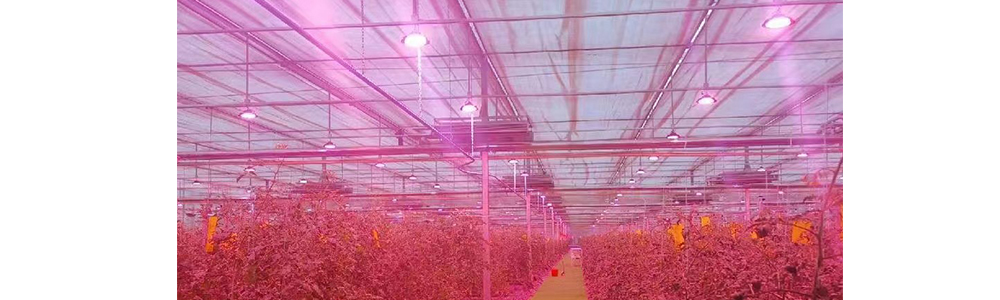

Overhead coverage
Installed in a working commercial grow.
Specifications
- Spectrum
- Customised per order ('Tailored balance spectrum according your plants')
- Input voltage
- AC 100-364V, 50/60Hz (integrated driver)
- Dimensions
- GK100 D290 x 160 mm; GK150 D310 x 165 mm; GK200 D400 x 165 mm
Engineering data
- Housing
- Die-cast aluminium, polished then stove-varnished, frosted texture
- Cover
- Transparent
- Units per carton
- 2 pc/carton
Models in this range
| Model | Power | Size | Diodes | Driver | Net weight | Gross weight | Packing |
|---|---|---|---|---|---|---|---|
| GK100 | 100 W | D290 x 160 mm | 140 pcs / 40B7C | 100W AC100-364V 50-60Hz | 2.14 kg | 5 kg | 340 x 340 x 145 mm |
| GK150 | 150 W | D310 x 165 mm | 210 pcs / 30B7C | 150W AC100-364V 50-60Hz | 2.73 kg | 5.8 kg | 375 x 375 x 150 mm |
| GK200 | 200 W | D400 x 165 mm | 280 pcs / 40B7C | 200W AC100-364V 50-60Hz | 3.44 kg | 8 kg | 410 x 410 x 155 mm |
PPFD distribution maps available with your quote.
Before you spec it
What is the GK actually for?
High-ceiling spaces where a bench-shaped footprint does not apply: greenhouse gutters, tall propagation halls, warehouse-conversion rooms before the racking goes in, and mixed horticultural/industrial buildings. In a fixed-bench flower room a panel fixture with a published PPFD map will give you better uniformity over the bench, and a photometric file to plan against.
GK or GM?
What does "customised spectrum" mean in practice?
Tell us the crop and the stage — leafy greens under supplemental light, propagation, ornamentals, cannabis mothers — and the factory builds the diode mix to suit. It is why this range has no single published spectrum graph.
Why is there no PPF figure on this page?
Because the spectrum is built per order, and PPF depends on it. We publish the mechanical and electrical specification, which is fixed, and quote photometrics with the build.
