GH Series High Bay
100W / 150W / 200W die-cast UFO high bay, greenhouse supplemental
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
What the GH Series High Bay is for

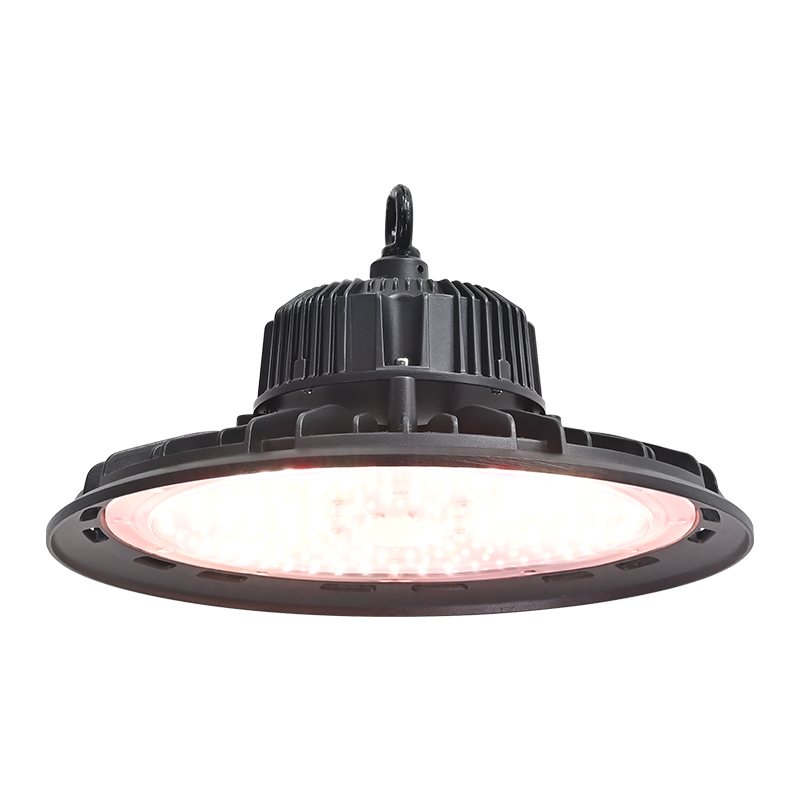

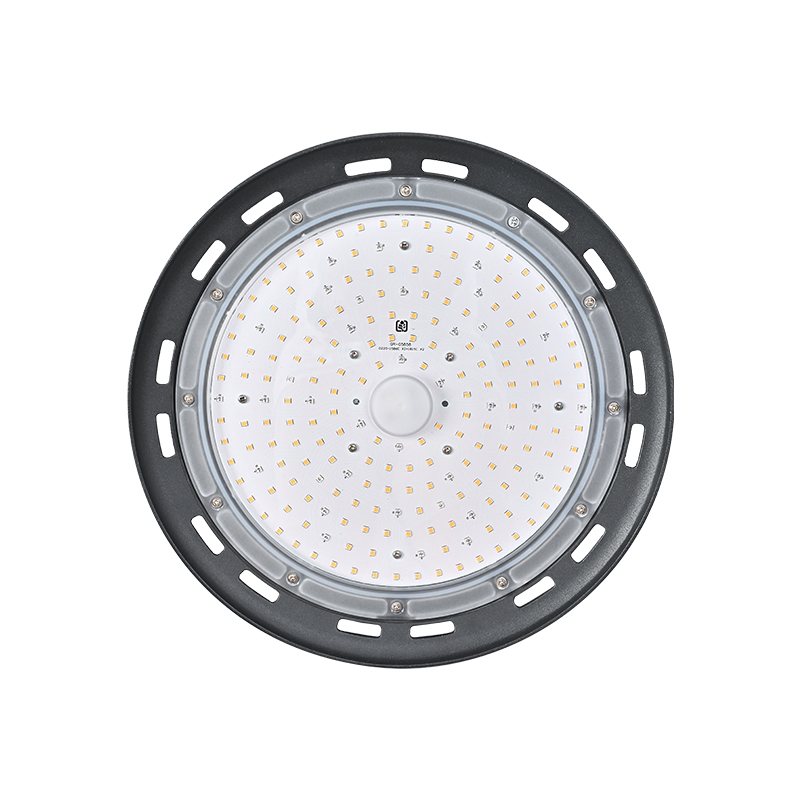

A three-size die-cast aluminium UFO high bay — 100W, 150W and 200W — built for greenhouses and tall indoor spaces where the light has to come from high up. Sanan or Epistar SMD3030 diodes sit under a clear PC cover with secondary optics, the driver takes AC 100-364V, and the spectrum is specified per order: full spectrum, red/blue mix, pink, or a custom mix for the crop.
What you get
- Three sizes: GH100 (Ø270 × 150 mm), GH150 (Ø310 × 150 mm), GH200 (Ø360 × 170 mm).
- Spectrum built to order — full spectrum, red/blue, pink or custom, for seedlings, vegetables and fruit, or flowers.
- Die-cast aluminium housing with a clear PC cover and secondary optics; 60°, 90° or 120° beam.
- Wide-input driver: AC 100-364V, 50-60Hz, isolated or non-isolated.
- Light to hang — 2.15 kg, 2.35 kg and 3.0 kg packed, one per carton.
- Rated beyond 50,000 hours; warranty 2, 3 or 5 years by order.
Where it's used
- Rooms

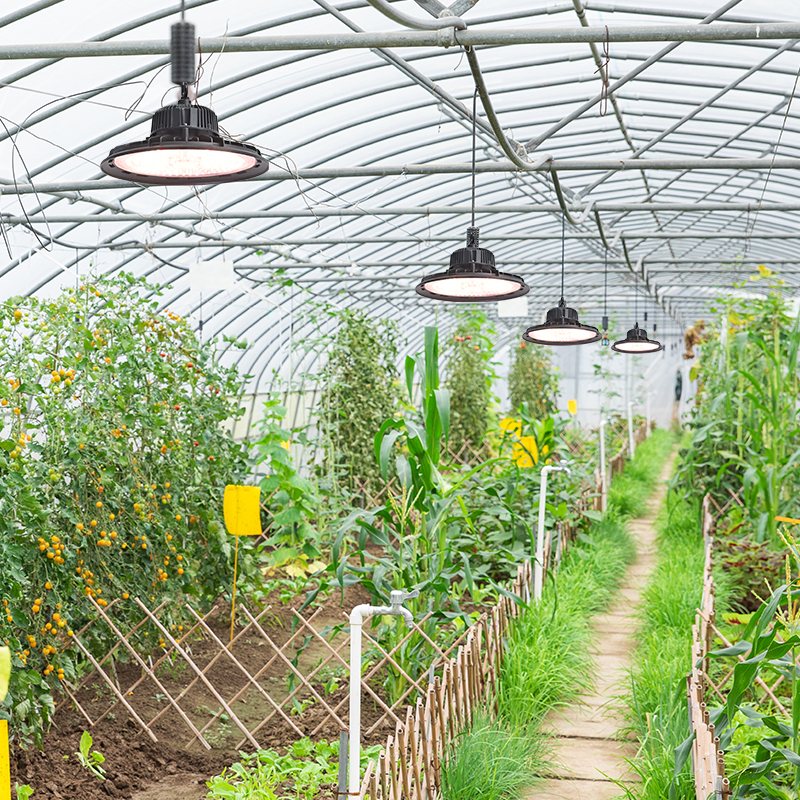

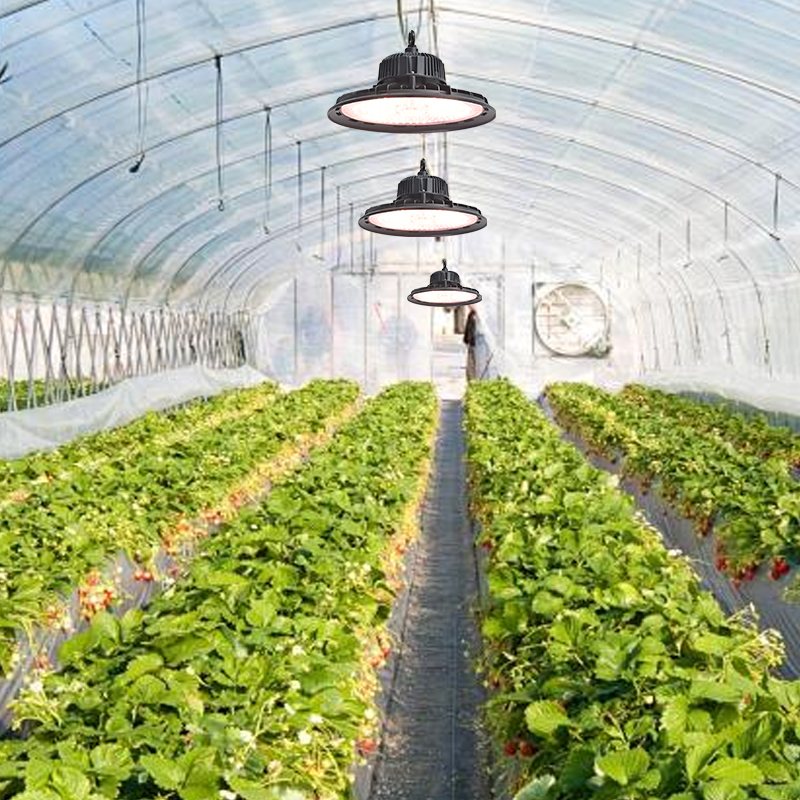

- Greenhouses and indoor growing
- Crops
- Seedlings, vegetables and fruit, flowers
-

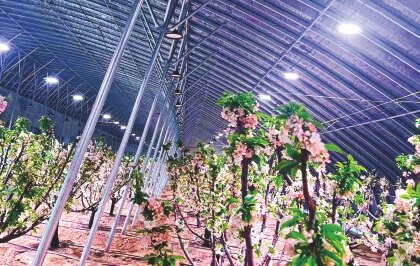

Greenhouse fruit trees, supplemental lighting overhead -

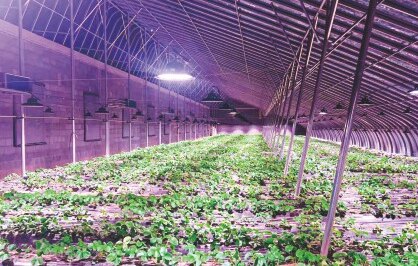

Seedling bed in a tunnel greenhouse
Specifications
- Factory model
- LH-GH01
- Power
- 100 / 150 / 200 W
- Spectrum
- Full spectrum, red/blue mix, pink, or custom
- Input voltage
- AC 100-364V, 50-60Hz
- Rated lifetime
- 50,000 h
- Warranty
- 2 / 3 / 5 years (by order)
Engineering data
- Diode brands
- Sanan / Epistar SMD3030
- Beam angle
- 60° / 90° / 120°
- Driver
- Isolated or non-isolated
- Housing
- Die-cast aluminium
- Cover
- Clear PC with secondary optics
- Packing
- 1 pc/carton
Models in this range
| Model | Factory model | Power | Size | Gross weight | Packing |
|---|---|---|---|---|---|
| GH100 | LH-GH01-100 | 100 W | Ø270 x 150 mm | 2.15 kg | 280 x 280 x 130 mm |
| GH150 | LH-GH01-150 | 150 W | Ø310 x 150 mm | 2.35 kg | 325 x 325 x 125 mm |
| GH200 | LH-GH01-200 | 200 W | Ø360 x 170 mm | 3 kg | 365 x 365 x 135 mm |
PPFD distribution maps available with your quote.
Before you spec it
Where does a UFO high bay make sense?
In greenhouses and high-ceiling buildings where fixtures hang several metres above the crop. A round high bay throws a wide circle from height, so fewer fixtures cover a bay than with bars hung close to the canopy.
Which size do I pick?
Work from mounting height and the area each fixture has to cover. Send the bay width, truss height and crop and we will lay out the count and wattage.
Can you put our logo or a custom spectrum on it?
Yes. Spectrum, power, size and logo are all customisable on order quantities.
