DS320S Bar
320W deep-red-weighted supplemental bar
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 896 µmol/s
- Flowering footprint
- 2ft x 4ft
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
What the DS320S Bar is for

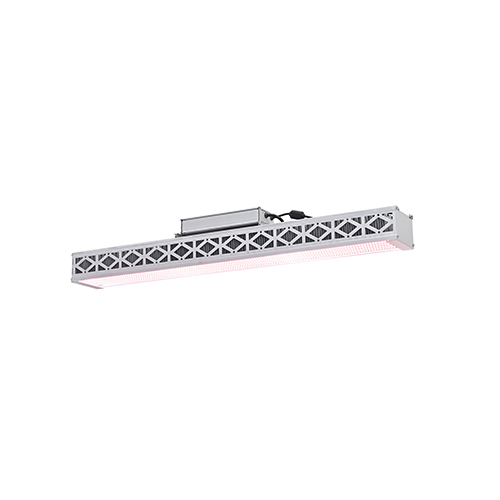

A 320W linear bar in a truss-style aluminium frame with the driver mounted on top, out of the light path. 896 µmol/s with a deep-red-weighted full spectrum — a strong peak near 660nm over a broad white base. Built as a supplemental and inter-row fixture for rooms where the top light is set and you need to add photons in a defined strip.
What you get
- 896 µmol/s, 320W at 277VAC.

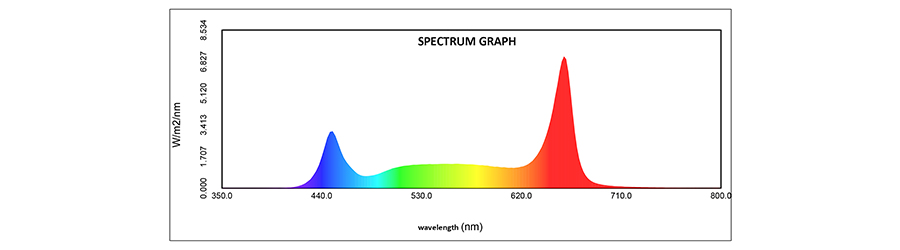

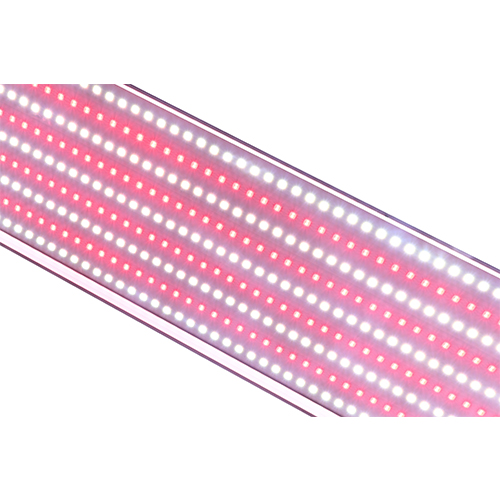

- Deep-red-weighted full spectrum: a defined blue peak near 450nm, a broad 500-620nm base and a dominant peak near 660nm.
- 2ft × 4ft flowering, 4ft × 5ft vegetative coverage, 120° beam.

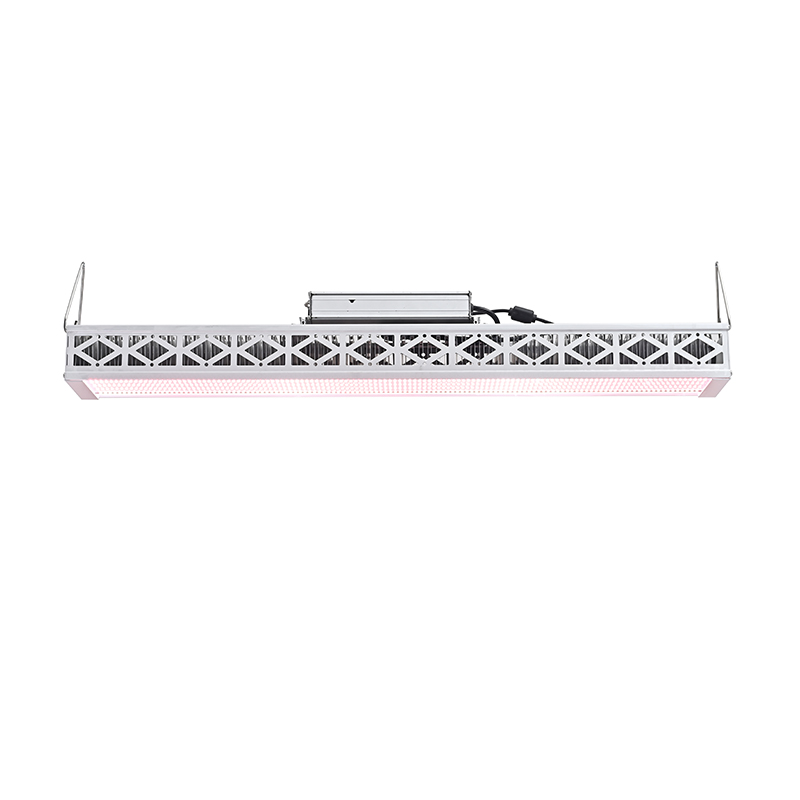

- Truss-frame construction, 36" × 4.33" × 5.04", 4.8kg, with the driver externally mounted for heat separation.

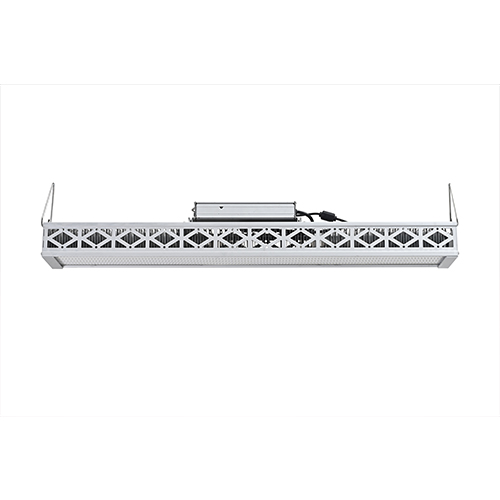

- Two hanging bails for fast positioning between rows or over a gutter.
- 0-100% dimmer knob; 120-277VAC or 277-480VAC input, power factor above 0.95.
- Passive cooling to 40°C ambient, mounting height 6-24 inches.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use
Inside the canopy
Installed in a working commercial grow. Rated coverage: Flower 2ft x 4ft; Veg 4ft x 5ft.
Specifications
- Power
- 320 W
- PPF
- 896 µmol/s
- Coverage
- Flower 2ft x 4ft; Veg 4ft x 5ft
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming
- 0-100% dimmer knob
- Dimensions
- 36"L x 4.33"W x 5.04"H (915 x 110 x 128 mm)
- Weight
- 4.8 kg
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 480W HPS/MH
- Diode brands

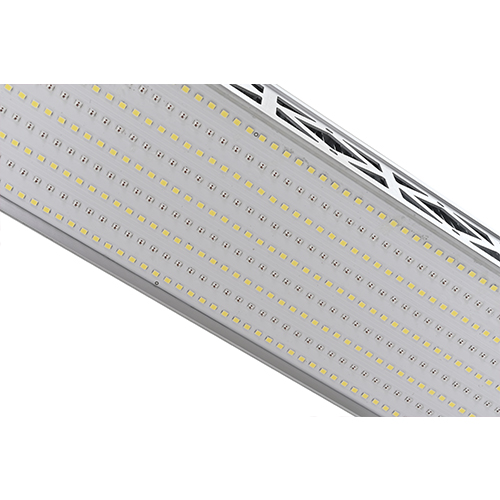

- Samsung & Osram
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
- Form factor

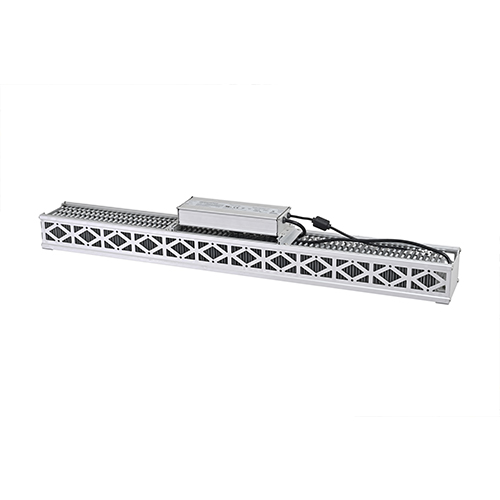

- Linear truss-frame bar with top-mounted external driver and two hanging bails (product image)
PPFD distribution maps available with your quote.
Before you spec it
DS320S or DS320G — they are the same wattage?
Same 320W and same 896 µmol/s, different optics and spectrum shaping. The DS320S is 36 inches long over a 2ft × 4ft flowering strip; the DS320G is 31.9 inches over a narrower 2ft × 3ft strip with its red peak sitting nearer 690nm and a longer far-red tail — shaped for greenhouse supplemental work under natural light.
Where does it sit against the DS400D?
The DS400D is a 400W top light at 1,120 µmol/s over the same 2ft × 4ft footprint. The DS320S is the supplemental sibling — less output, external driver, truss frame, easier to place between rows.
Can I use it as a primary top light?
You can, over a 2ft × 4ft strip. But if a bar is your top light, the DS400D gives you 25% more photons for 25% more power in a similar envelope.
How does it mount between rows?
Two hanging bails at the ends of the truss frame, at 6-24 inches from canopy. The external driver sits above the frame, so it is not radiating into the canopy from directly overhead.
