DF 1200W PLUS
Wide-board foldable full-spectrum, 2-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Input power
- 1200 W
- Ingress protection
- IP65
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
2-channel spectrum
Full spectrum (Samsung LM281B) with a 660nm deep-red peak and a 450nm blue peak; small UV and 730nm far-red shoulders. Traced from the factory spectral chart.
Download the full spec sheet (PDF)What the DF 1200W PLUS is for

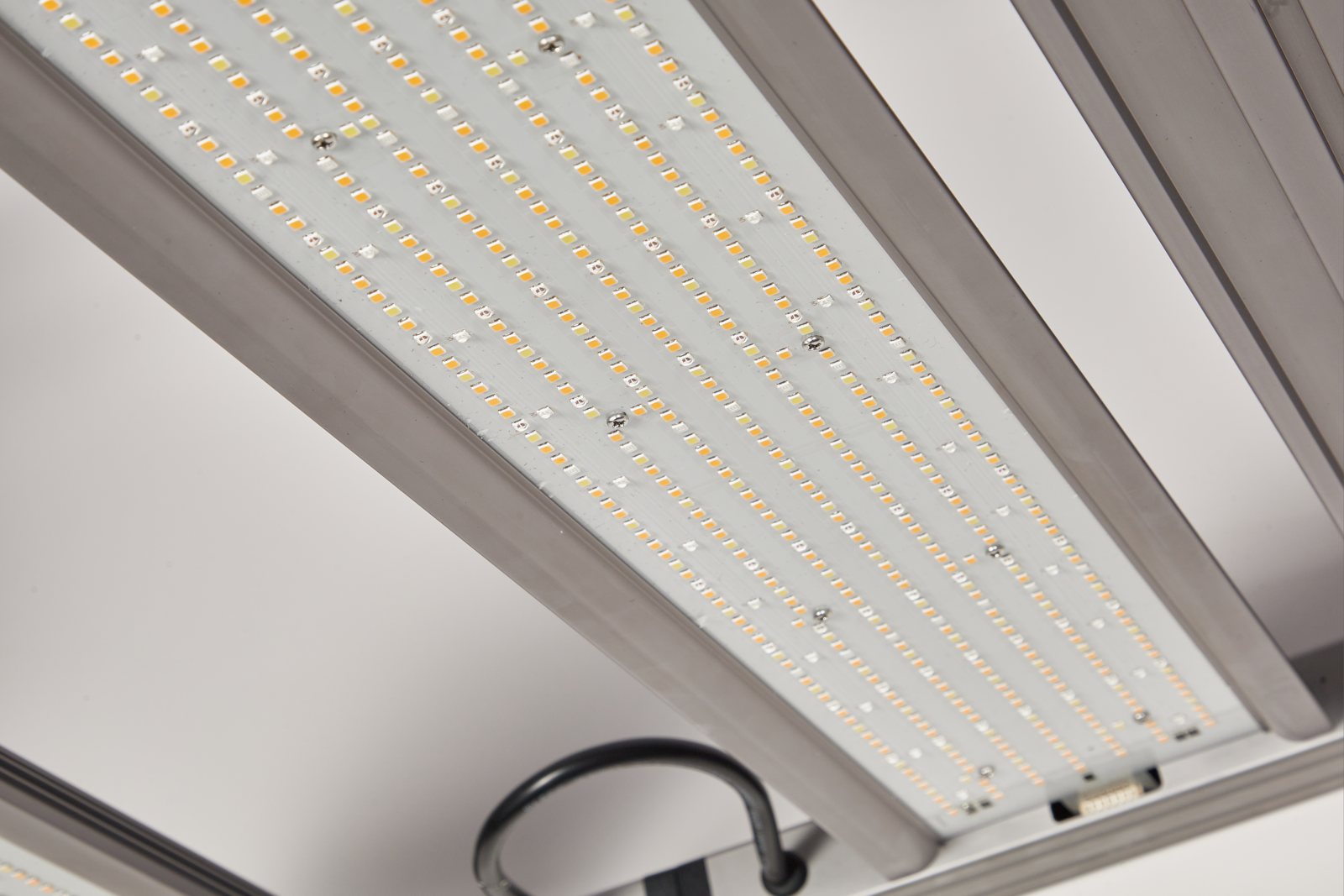

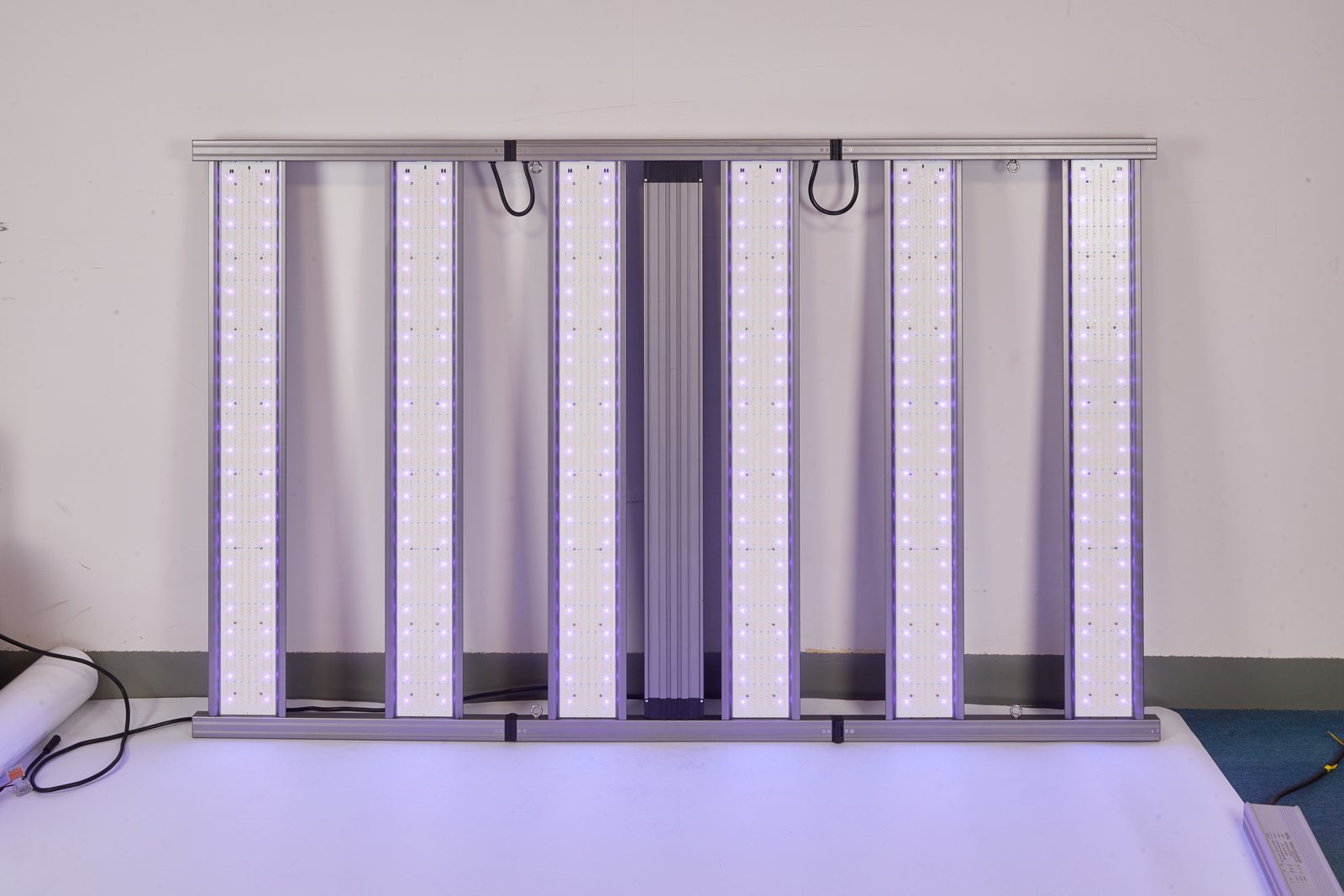

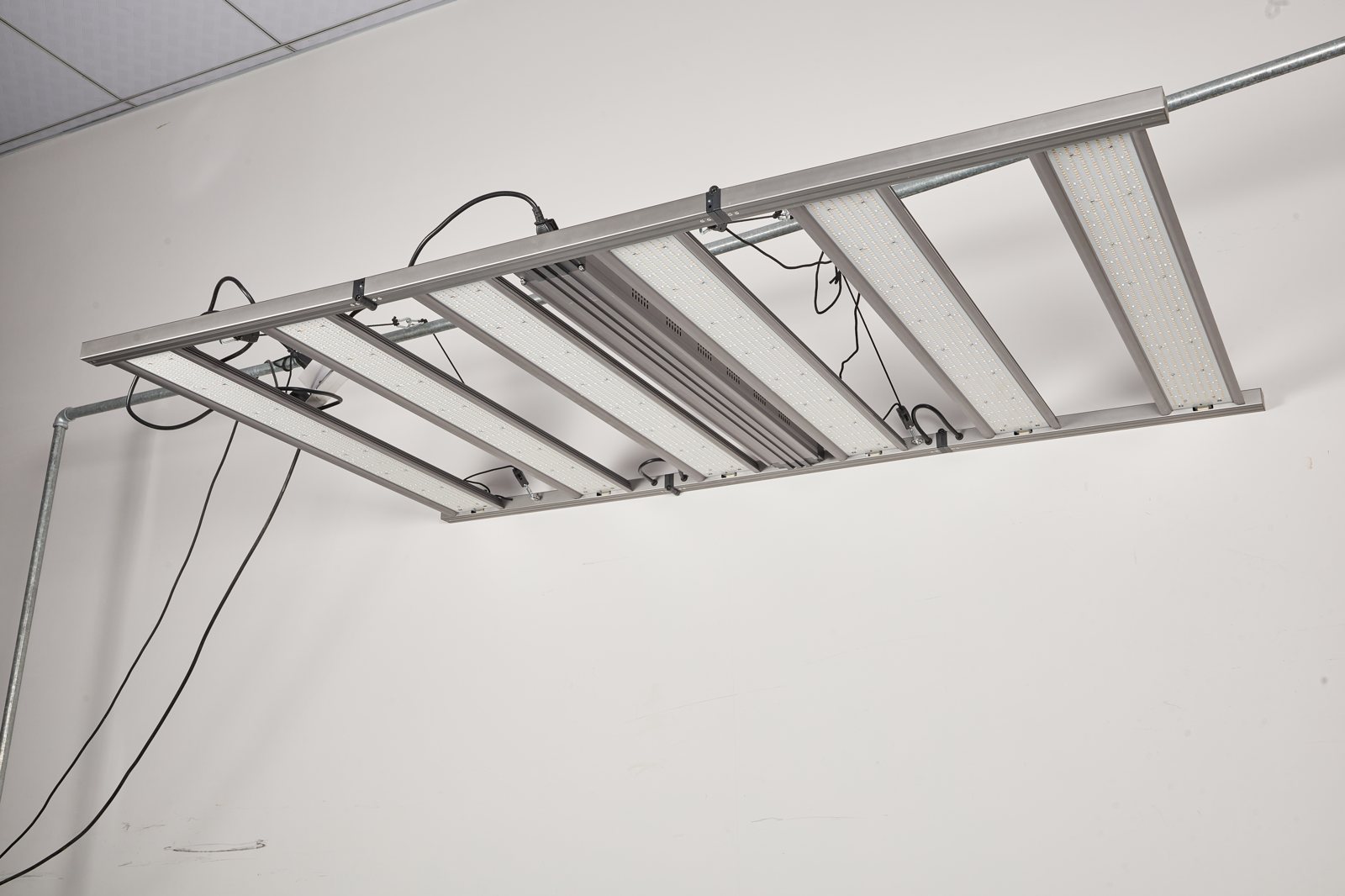

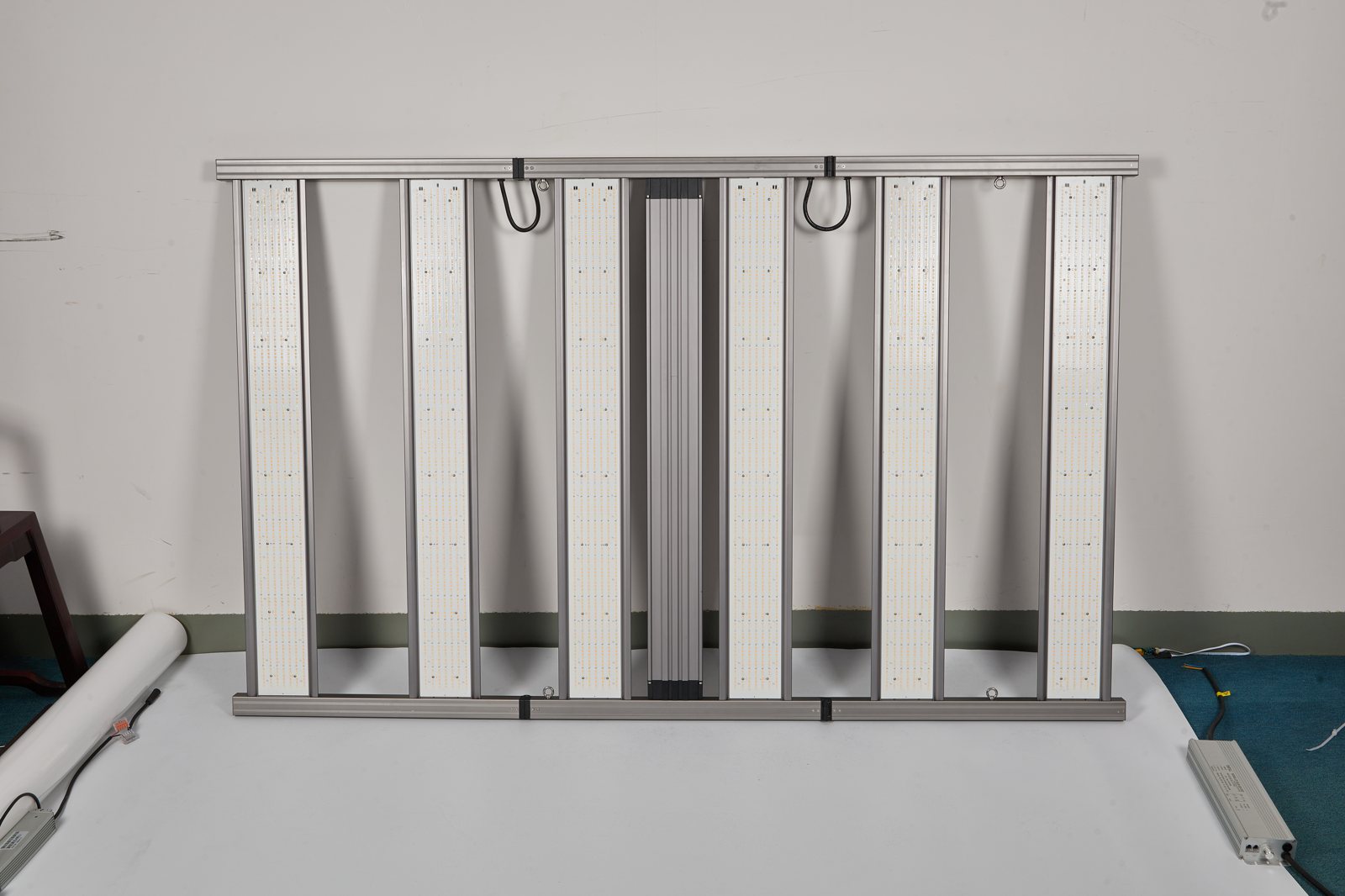

A wide-board foldable top light that runs from 800W to 1200W on two independent channels. Six wide boards carry 3,710 lensed diodes — Samsung LM281B full spectrum with 660nm deep red — on a frame 1760 × 1110 mm and only 45 mm deep, so it hangs close in rooms where ceiling height is the constraint. It folds for freight and ships one fixture per carton.
What you get
- 800-1200W, two dimming channels, so one SKU covers a range of canopy targets instead of stocking separate wattages.
- 3,710 diodes under lenses: Samsung LM281B full spectrum plus 660nm deep red.
- Wide-board frame, 45 mm deep: 1760 × 1110 × 45 mm, 19.1 kg.
- IP65, UL-listed driver, power factor at or above 0.95.
- AC 110-277V input for North American and international supply.
- Folds flat: one fixture per carton, 1140 × 110 × 990 mm, 23 kg gross.
- Five-year warranty.
Specifications
- Factory model
- LH-DF47-1200
- Power
- 800-1200 W
- Spectrum
- Full spectrum (Samsung LM281B) + 660nm deep red, lensed
- Control channels
- 2
- Input voltage
- AC 110-277V
- Dimming
- Two independent channels, full spectrum
- Dimensions
- 1760 x 1110 x 45 mm
- Weight
- 19.1 kg
- IP rating
- IP65
- Warranty
- 5 years
Engineering data
- Diode brands
- Samsung LM281B + 660nm
- Diode count
- 3710 pcs (with lenses)
- Power factor
- ≥ 0.95
- Driver
- UL-listed driver
- Form factor
- Wide-board foldable frame
- Packing
- 1 pc/carton, 1140 x 110 x 990 mm, 23 kg gross
PPFD distribution maps available with your quote.
Before you spec it
Why two channels instead of three?
Two channels keep the recipe simple for rooms that run one settled spectrum and adjust intensity by stage. If you need to dose UV on its own schedule, look at the three-channel TF 1000W PRO.
How does it differ from the SF ECO range?
The SF ECO fixtures are single-channel and top out at 1000W on a square 1120 mm frame. The DF 1200W PLUS adds a second channel, lensed optics and a wider, longer frame for larger benches.
Do you have a PPFD map for it?
Not published yet. Send your bench size and target PPFD and we will work the layout with you before you commit to a fixture count.
