TF 1200W PRO
Foldable full-spectrum + UV/IR, 3-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 3,360 µmol/s
- Input power
- 1200 W
- Flowering footprint
- 4ft x 6ft
- Ingress protection
- IP65
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
Coverage & PPFD
Rated flowering footprint, 4 × 6 ft. Both readings are µmol/m²/s measured 1 ft from canopy (mounting range 6-24 in). The shading illustrates centre-to-edge falloff; it is not a measured grid. A full PPFD map at your mounting height comes with the quote.

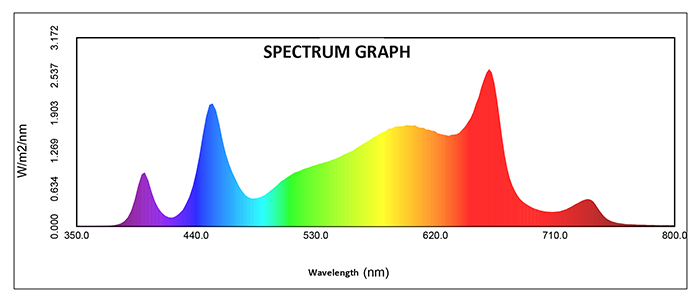

3-channel spectrum

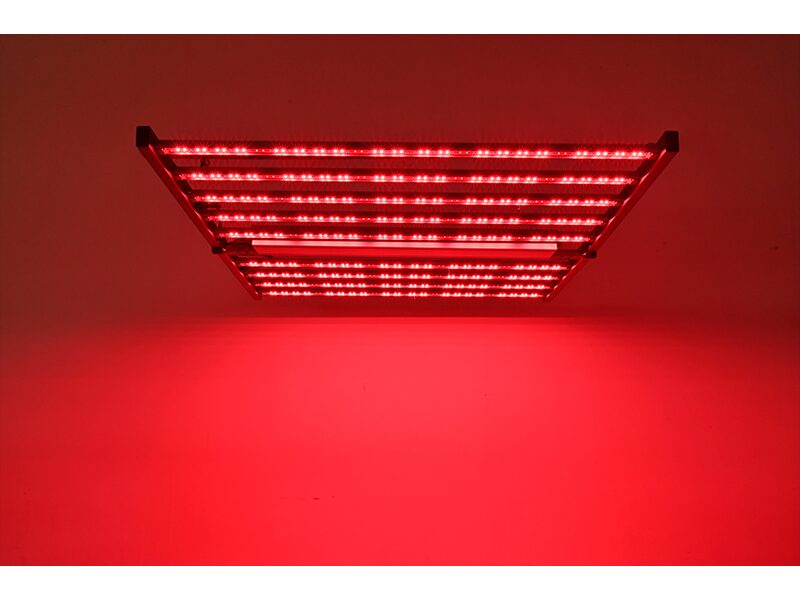

Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the TF 1200W PRO is for
The high-intensity option for a 4ft × 6ft bench. The TF 1200W PRO delivers 3,360 µmol/s — 20% more photons than the TF 1000W PRO over the same footprint, which is the difference between a 980 and an 866 µmol/m²/s canopy average. Three independent channels handle UV, far-red and the white/blue base. Same folding frame, same driver platform, same five-year term as the rest of the range.
What you get
- 3,360 µmol/s, 1,200W at 277VAC.
- 980 µmol/m²/s average PPFD at 12 inches from canopy, peaking at 1,290 directly under the fixture — a CO₂-enriched flower room number, not a veg number.
- Three-channel control of UV (395nm), IR and deep red (660/730nm) and the white/blue base, independently dimmable 0-100%.
- 4ft × 6ft flowering, 5ft × 7ft vegetative coverage on a 120° beam angle.
- 120-277VAC or 277-480VAC input, power factor above 0.95, 4.33A at 277V.
- Passive cooling to 40°C / 104°F ambient; no fans, no filters, nothing in the airstream above the canopy.
- IP65, flicker-free, damp-location rated; folds flat and ships one per carton at 25.1kg gross.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

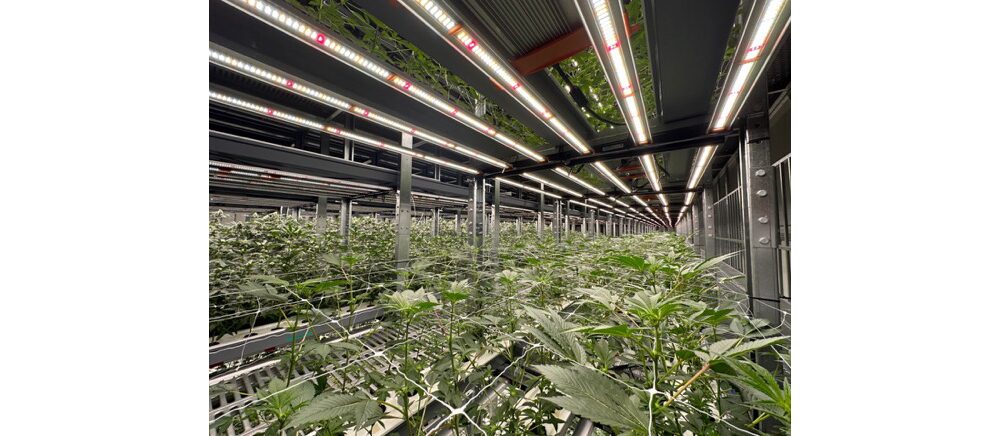

Over a commercial flowering bench
Installed in a working commercial grow. Rated coverage: Flower 4ft x 6ft; Veg 5ft x 7ft.

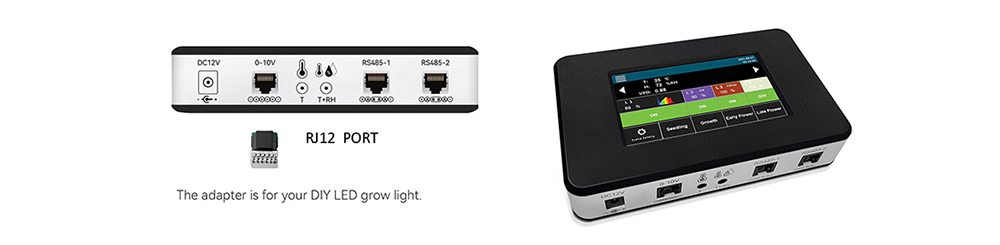

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| TF 1600W PRO | 1600 W | 4,480 µmol/s | 4ft x 8ft | 1,300 µmol/m²/s | View → |
| TF 1200W PRO | 1200 W | 3,360 µmol/s | 4ft x 6ft | 980 µmol/m²/s | this page |
| TF 1000W PRO | 1000 W | 2,800 µmol/s | 4ft x 6ft | 866 µmol/m²/s | View → |
| TF 720W PRO | 720 W | — | — | 624 µmol/m²/s | View → |
Specifications
- Power
- 1200 W
- PPF
- 3,360 µmol/s
- Spectrum
- Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV
- Control channels
- 3
- Coverage
- Flower 4ft x 6ft; Veg 5ft x 7ft
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming

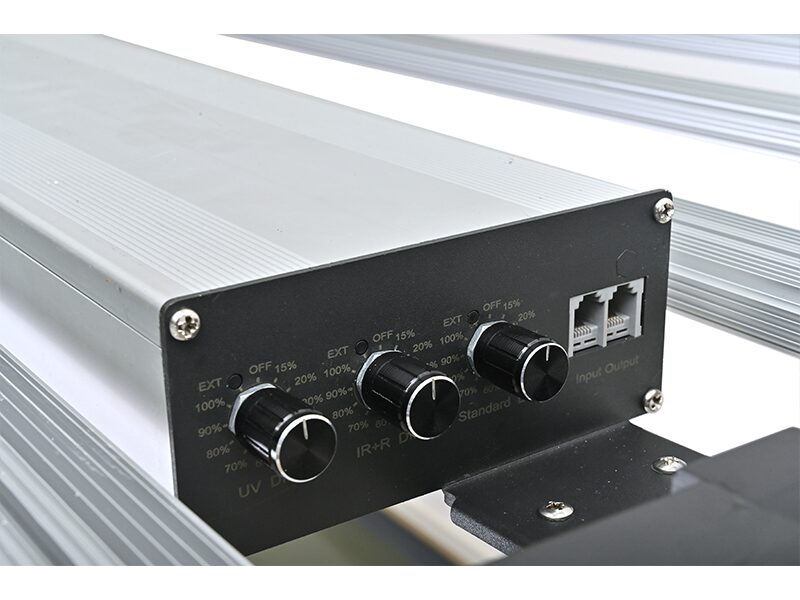

- 0-100% dimmer knob; three channels (UV / IR+deep-red / white+blue) dimmable independently; RJ12 port for group control
- Dimensions
- 71"L x 43.3"W x 2.0"H (1800 x 1140 x 50 mm)
- IP rating
- IP65
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 1800W HPS/MH
- Average PPFD @ 1 ft
- 980 µmol/m²/s
- Centre PPFD @ 1 ft
- 1,290 µmol/m²/s
- Diode brands
- Samsung & Osram
- Diode configuration
- Samsung LM281b, 450nm, 660nm, 730nm, 395nm chips
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Packing
- 1 pc/carton, L1140 x W990 x H130 mm, 25.1 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 10.9A
- 120Vac 10.0A
- 220Vac 5.45A
- 240Vac 5.0A
- 277Vac 4.33A
PPFD distribution maps available with your quote.
Before you spec it
TF 1200W PRO or TF 1000W PRO — they cover the same bench?
They do, and that is the point. Both light 4ft × 6ft; the 1200W puts 3,360 µmol/s into it against 2,800 µmol/s from the TF 1000W PRO. Pick the 1200W when you are running CO₂ and want the higher canopy average — 980 µmol/m²/s at 12 inches against 866 from the 1000W. Pick the 1000W when the lower figure meets your target and you would rather bank the connected load.
What is the real benefit of three channels over one dimmer?
Independent UV and far-red. You can hold the white/blue base flat while ramping far-red into late flower or dosing UV for a defined window, then pull both back — without re-hanging fixtures or accepting a fixed spectrum. The single-channel SF 880D ECO has no UV or far-red diodes at all, which is the trade you are making at the ECO tier.
Can I mix TF 1200W PRO with other fixtures on one controller?
Yes. All TF, TR, DR and SF fixtures share the RJ12 group-control interface, so a single GC001 can run a mixed room — up to 100 fixtures. Group them by zone in the controller so a veg room and a flower room keep separate schedules.
How much electrical headroom does it need?
4.33A at 277V, 10.0A at 120V, power factor above 0.95. On a 480V three-phase service the per-fixture current is low enough that circuit count, rather than fixture count, is rarely the constraint.
