TF 1600W PRO
Foldable full-spectrum + UV/IR, 3-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 4,480 µmol/s
- Input power
- 1600 W
- Flowering footprint
- 4ft x 8ft
- Ingress protection
- IP65
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
Coverage & PPFD
Rated flowering footprint, 4 × 8 ft. Both readings are µmol/m²/s measured 1 ft from canopy (mounting range 6-24 in). The shading illustrates centre-to-edge falloff; it is not a measured grid. A full PPFD map at your mounting height comes with the quote.

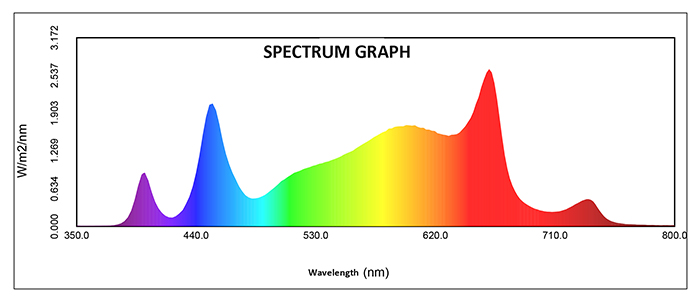

3-channel spectrum

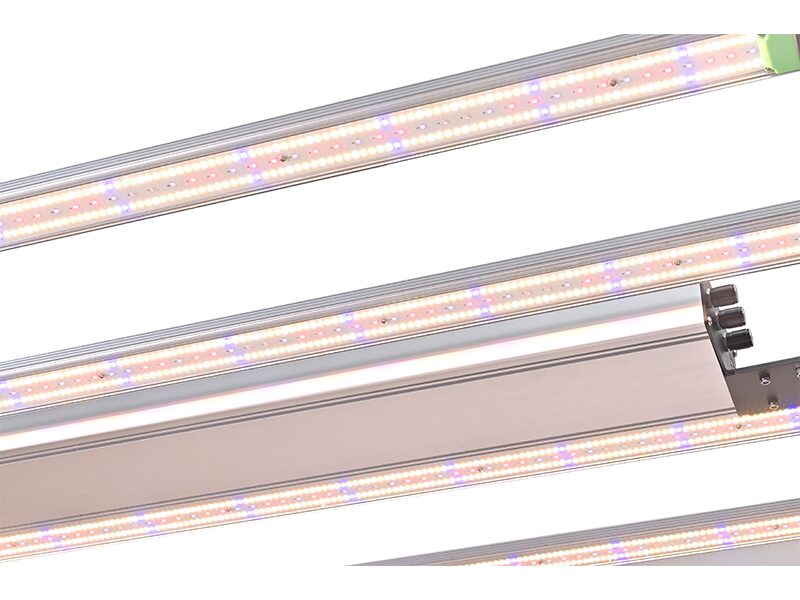

Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the TF 1600W PRO is for
The largest fixture in the foldable TF range: 4,480 µmol/s across a 4ft × 8ft flowering footprint. Three independently dimmable channels — white and blue, deep red and far-red, and UV — let a head grower move spectrum through the crop cycle without changing fixtures. The frame folds flat for freight and assembles plug-and-play. Built for single-tier flower rooms on a 2,400W HPS replacement schedule.
What you get
- 4,480 µmol/s, drawing 1,600W at 277VAC — the highest single-fixture output in the range.

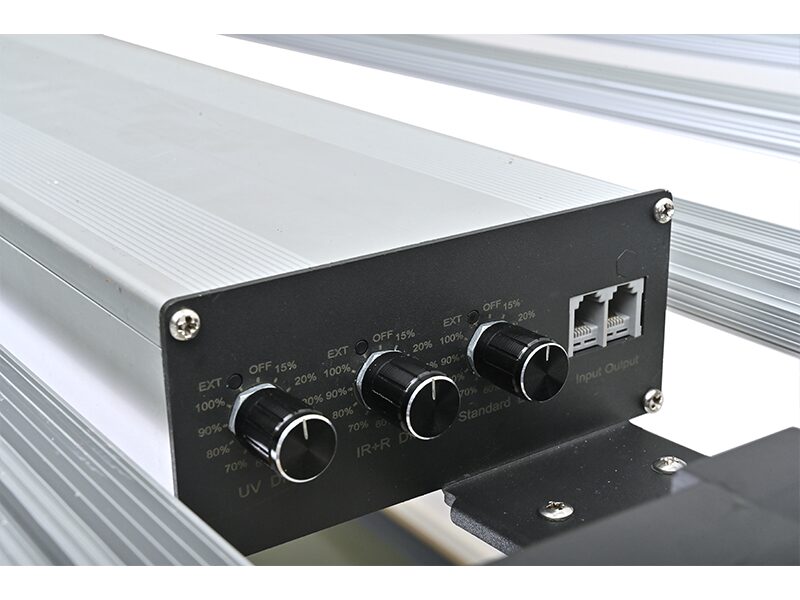

- Three-channel control. UV (395nm), IR and deep red (660/730nm), and the white/blue base each dim independently from the fixture knob or the GC001 controller.
- 4ft × 8ft flowering, 5ft × 9ft vegetative coverage, with 1,300 µmol/m²/s average PPFD measured at 1ft from canopy.
- Wide-input driver: 120-277VAC or 277-480VAC at 50/60Hz, power factor above 0.95. At 277V the fixture draws 5.8A, so a 480V three-phase room fits more fixtures per circuit.
- Passive thermal management rated to 40°C / 104°F ambient — no fans in the canopy, nothing to clean or replace.
- IP65 sealed, flicker-free and damp-location rated, so IPM sprays and irrigation overspray are not a service event.
- Folding frame ships at 1235 × 1160 × 142mm, 32.9kg gross — one fixture per carton, no field assembly of bars.
- Five-year standard warranty, L90 rated beyond 50,000 hours.
What it looks like in use

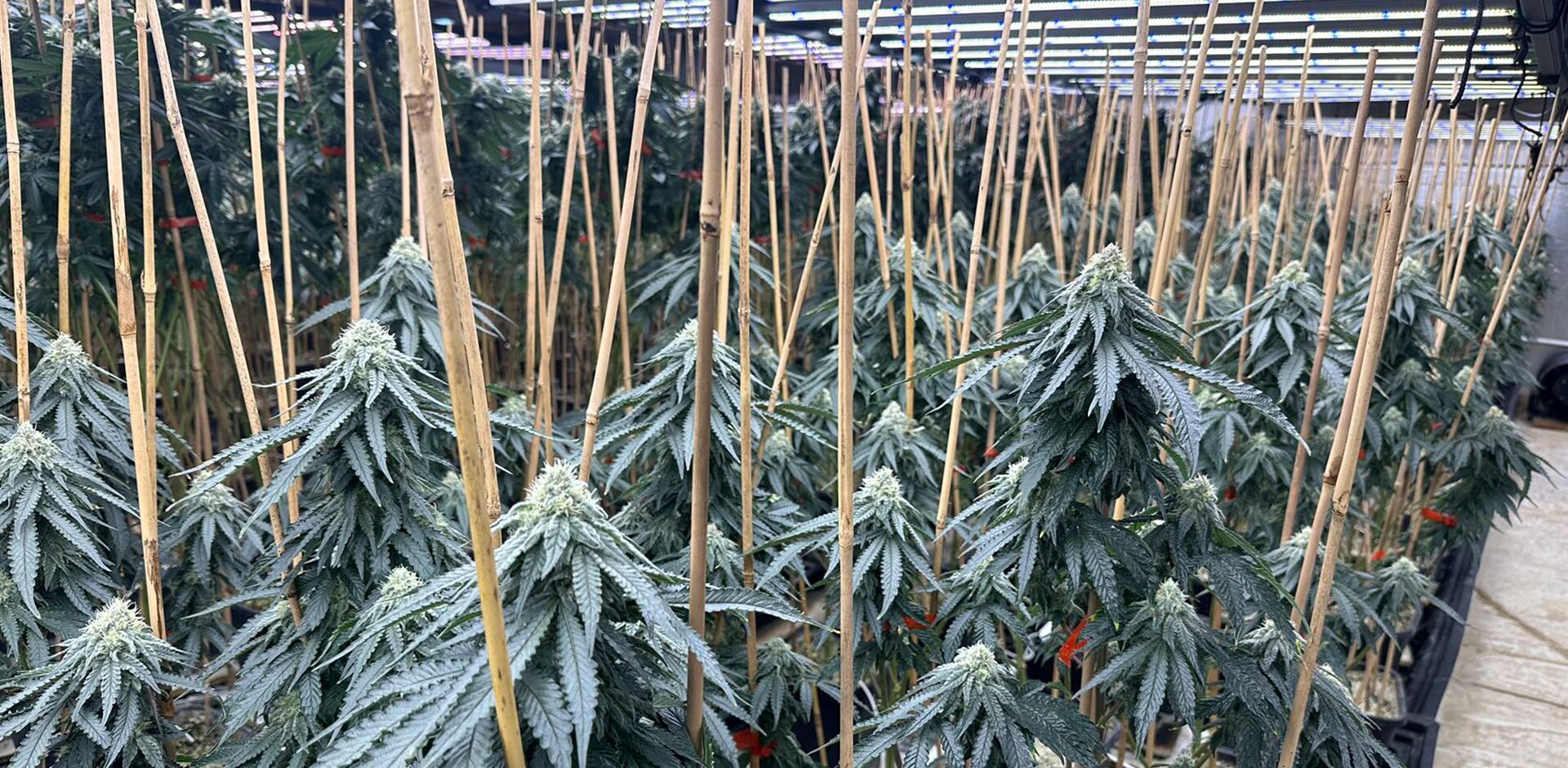

Over a commercial flowering bench
Installed in a working commercial grow. Rated coverage: Flower 4ft x 8ft; Veg 5ft x 9ft.

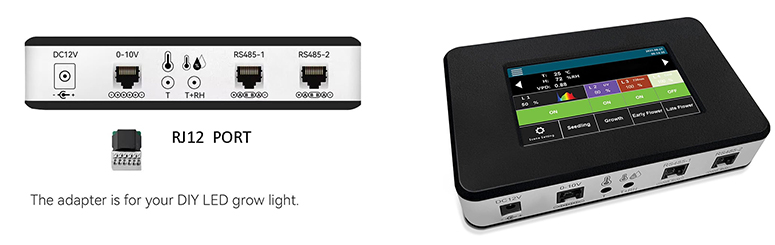

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| TF 1600W PRO | 1600 W | 4,480 µmol/s | 4ft x 8ft | 1,300 µmol/m²/s | this page |
| TF 1200W PRO | 1200 W | 3,360 µmol/s | 4ft x 6ft | 980 µmol/m²/s | View → |
| TF 1000W PRO | 1000 W | 2,800 µmol/s | 4ft x 6ft | 866 µmol/m²/s | View → |
| TF 720W PRO | 720 W | — | — | 624 µmol/m²/s | View → |
Specifications
- Power
- 1600 W
- PPF
- 4,480 µmol/s
- Spectrum
- Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV
- Control channels
- 3
- Coverage
- Flower 4ft x 8ft; Veg 5ft x 9ft
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming
- 0-100% dimmer knob; three channels (UV / IR+deep-red / white+blue) dimmable independently; RJ12 port for group control
- IP rating
- IP65
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 2400W HPS/MH
- Average PPFD @ 1 ft
- 1,300 µmol/m²/s
- Centre PPFD @ 1 ft
- 1,720 µmol/m²/s
- Diode brands
- Samsung & Osram
- Diode configuration
- Samsung LM281b, 450nm, 660nm, 730nm, 395nm chips
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Packing
- 1 pc/carton, L1235 x W1160 x H142 mm, 32.92 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 14.5A
- 120Vac 13.3A
- 220Vac 7.3A
- 240Vac 6.7A
- 277Vac 5.8A
PPFD distribution maps available with your quote.
Before you spec it
How does the TF 1600W PRO mount, and at what height?
It hangs from four lifting ropes (included) at 6-24 inches above canopy. The PPFD map is measured at 12 inches; going higher trades peak intensity for uniformity across the 4ft × 8ft footprint. A 10ft AC cable and a 10ft RJ12 net cable ship in the carton.
How many fixtures do I need per room?
Work from footprint, not wattage. One TF 1600W PRO covers a 4ft × 8ft flowering bench, so a 40ft × 40ft room laid out on 4ft × 8ft benches takes fixtures on the same grid. Send us room dimensions, ceiling height and a target PPFD and we will return a layout with predicted uniformity.
How does it connect to the GC001 controller?
Through the RJ12 port. Fixtures daisy-chain outlet to inlet, and one GC001 drives up to 100 of them — timing, ramped sunrise and sunset, per-channel dimming and temperature/humidity safety cut-outs. The controller is ordered separately; it does not ship in the fixture carton.
TF 1600W PRO or DR 1500W PLUS?
Both are high-output flower fixtures. Choose the TF 1600W PRO for the larger 4ft × 8ft footprint and for three-channel control when you want UV dosed separately from far-red. Choose the DR 1500W PLUS for a 4ft × 7ft bench on a flexible-arm frame with two-channel control, where UV and far-red move together.
