TF 720W PRO
Foldable full-spectrum + UV/IR, 3-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Input power
- 720 W
- Ingress protection
- IP65
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.

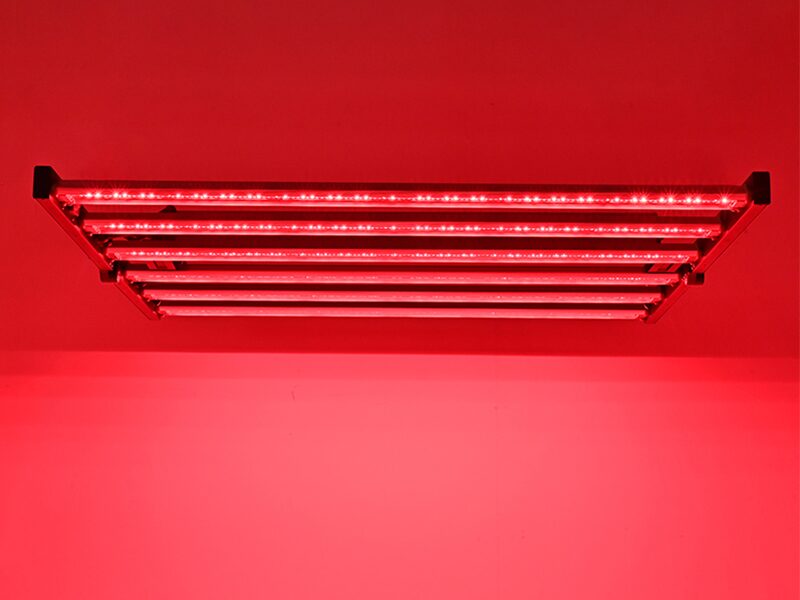

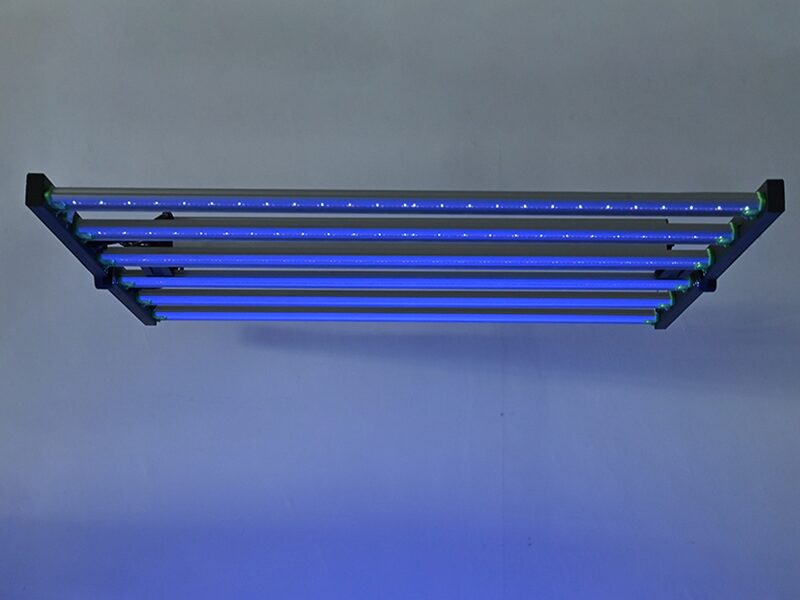

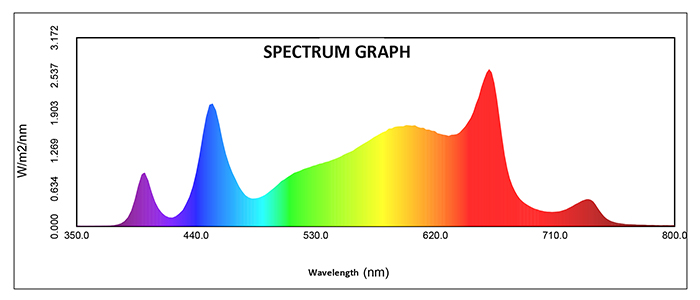

3-channel spectrum
Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the TF 720W PRO is for

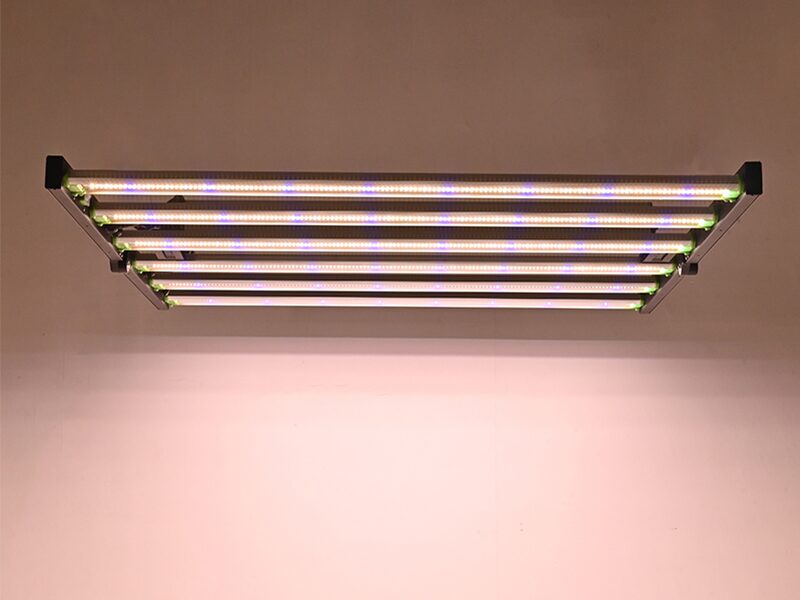

Three-channel spectrum control at the 4ft × 4ft scale. The TF 720W PRO puts 1,980 µmol/s over a single flowering bench from 1,920 Samsung LM281b diodes plus separate 450nm, 660/730nm and 395nm channels — the same control architecture as the 1,600W fixture, sized for smaller rooms, trial rooms and mother stock. Folding frame, 2-inch profile, five-year term.
What you get
- 1,980 µmol/s at 720W, 624 µmol/m²/s average PPFD at 12 inches from canopy.
- Three-channel control — UV, IR + deep red, white + blue — independently dimmable, identical to the larger TF fixtures.
- Itemised LED configuration: 1,920 pcs Samsung LM281b, 120 pcs 450nm, 288 pcs 660/730nm, 156 pcs 395nm.
- 4ft × 4ft flowering coverage on a 120° beam, 1,080W HPS replacement.
- 120-277VAC or 277-480VAC, 2.4A at 277V — low enough that a small room fits several fixtures per circuit.
- Passive cooling to 40°C ambient; IP65, flicker-free, damp-location rated.
- Lightest fixture in the foldable range at 19.5kg gross, 1190 × 600 × 130mm packed.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

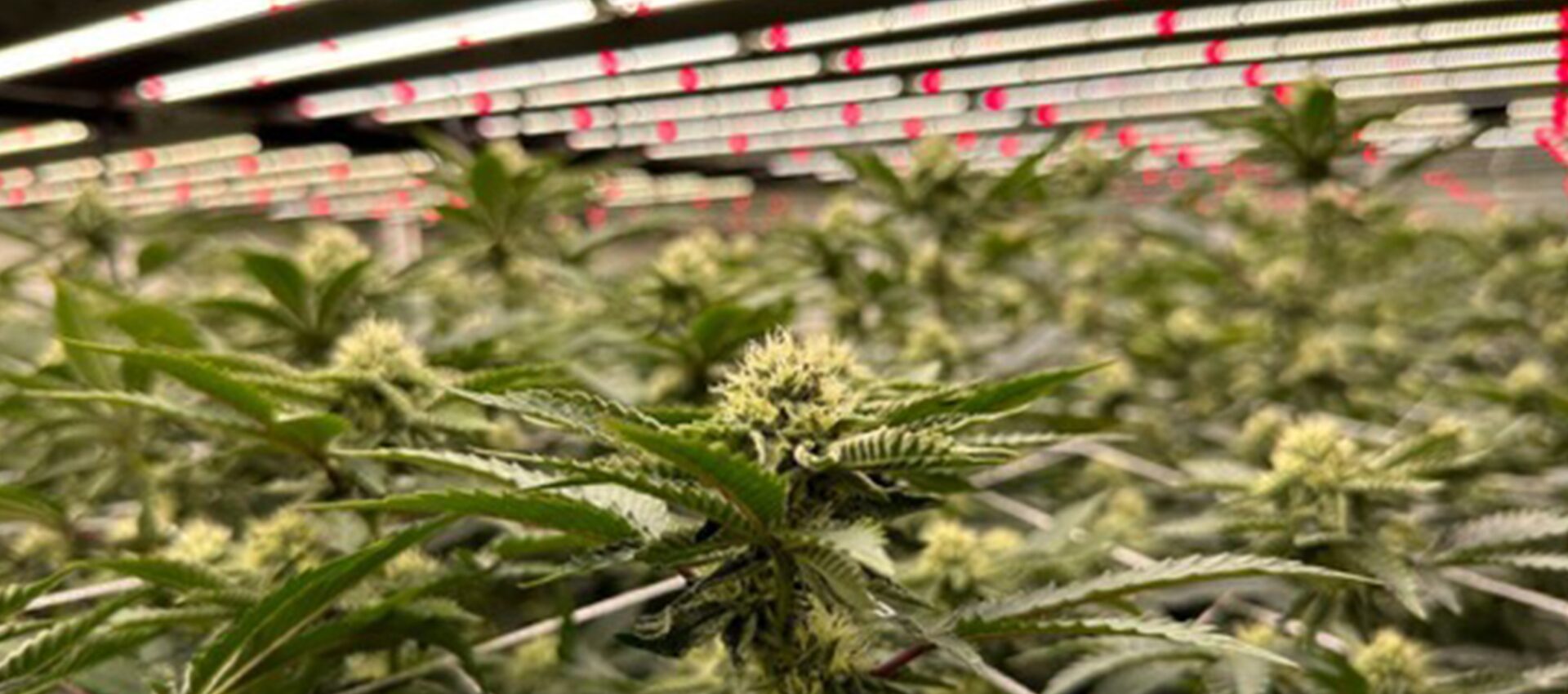

Over a commercial flowering bench
Installed in a working commercial grow.

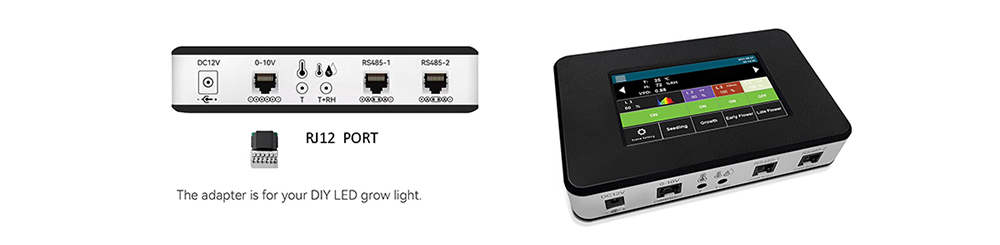

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| TF 1600W PRO | 1600 W | 4,480 µmol/s | 4ft x 8ft | 1,300 µmol/m²/s | View → |
| TF 1200W PRO | 1200 W | 3,360 µmol/s | 4ft x 6ft | 980 µmol/m²/s | View → |
| TF 1000W PRO | 1000 W | 2,800 µmol/s | 4ft x 6ft | 866 µmol/m²/s | View → |
| TF 720W PRO | 720 W | — | — | 624 µmol/m²/s | this page |
Specifications
- Power
- 720 W
- Spectrum
- Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV
- Control channels
- 3
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming

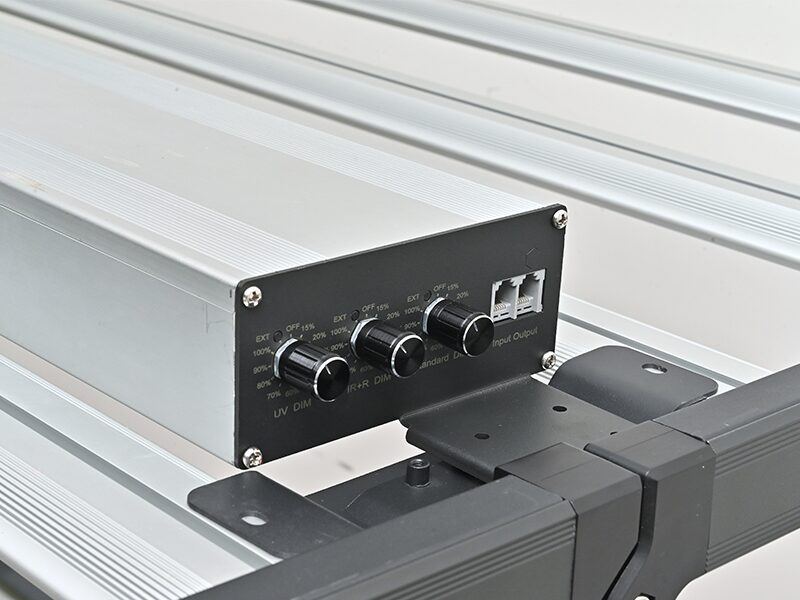

- 0-100% dimmer knob; three channels (UV / IR+deep-red / white+blue) dimmable independently; RJ12 port for group control
- Dimensions
- 43.3"L x 45"W x 2.0"H (1100 x 1140 x 50 mm)
- Weight
- 17.43 kg
- IP rating
- IP65
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 1080W HPS/MH
- Average PPFD @ 1 ft
- 624 µmol/m²/s
- Centre PPFD @ 1 ft
- 821 µmol/m²/s
- Diode brands
- Samsung & Osram
- Diode configuration
- 1920 pcs Samsung LM281b + 120 pcs 450nm + 288 pcs 660/730nm + 156 pcs 395nm
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Packing
- 1 pc/carton, L1190 x W600 x H130 mm, 19.5 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 5.8A
- 120Vac 5.3A
- 220Vac 3A
- 240Vac 2.8A
- 277Vac 2.4A
PPFD distribution maps available with your quote.
Before you spec it
TF 720W PRO or SF 880D ECO for a 4ft × 4ft bench?
Both cover 4ft × 4ft. The SF 880D ECO puts more photons into it — 2,464 µmol/s against 1,980 — on a single dimmer with no UV or far-red diodes. The TF 720W PRO trades raw output for control: three channels, UV and far-red on their own dimmers. Choose the SF for production rooms running a fixed recipe, the TF for rooms where spectrum is a variable you intend to change.
Is this the right fixture for a research or trial room?
It is the usual choice. Three-channel control at a single-bench scale means a trial room can reproduce the spectrum strategy of a 1,600W production room without the connected load, and the GC001 logs the same schedule across both.
Can I use it for veg or mothers?
Yes — dim the base channel and leave UV and far-red off. Vegetative coverage is 5ft × 6ft, wider than the flowering footprint, because the intensity target is lower.
How does it scale to a full room?
Fixtures daisy-chain over RJ12 to one controller, up to 100 units. A room of 4ft × 4ft benches takes one fixture per bench; send bench layout and target PPFD and we will return a plan.
