TR 1000W PRO
Flexible-arm full-spectrum + UV/IR, 3-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 2,800 µmol/s
- Input power
- 1000 W
- Flowering footprint
- 4ft x 6ft
- Ingress protection
- IP65
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
Coverage & PPFD
Rated flowering footprint, 4 × 6 ft. Both readings are µmol/m²/s measured 1 ft from canopy (mounting range 6-24 in). The shading illustrates centre-to-edge falloff; it is not a measured grid. A full PPFD map at your mounting height comes with the quote.

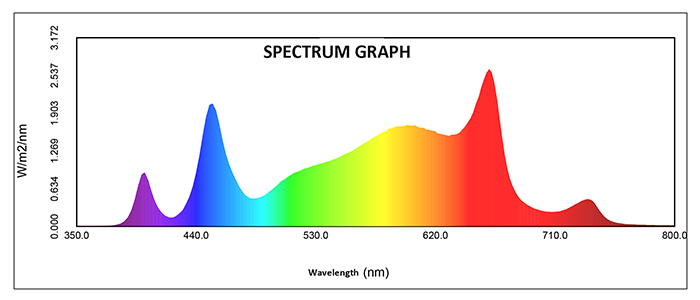

3-channel spectrum

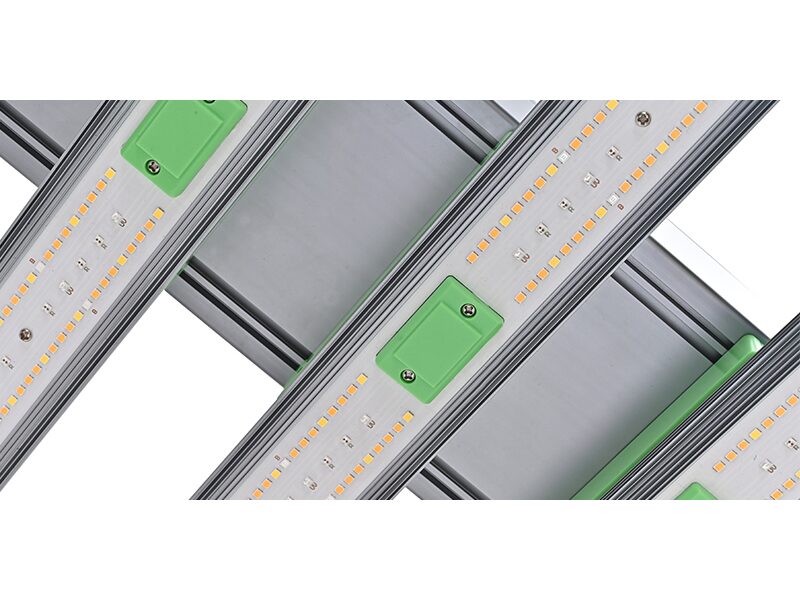

Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the TR 1000W PRO is for

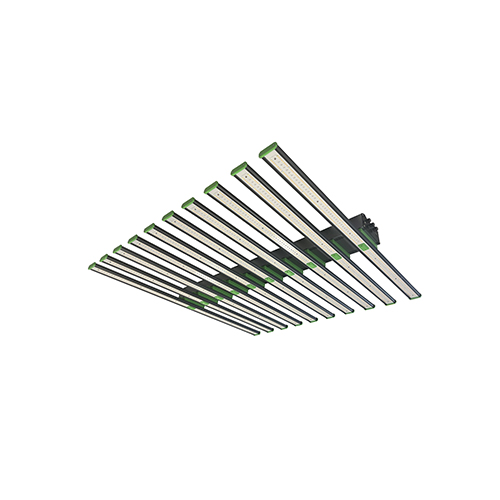

The TF 1000W PRO's LED engine on a flexible-arm frame. Same 2,800 µmol/s, same 4ft × 6ft flowering footprint, same three-channel UV / far-red / base control — but the bars sit on adjustable arms rather than a folding panel, which makes retrofits into rooms with existing trellis, irrigation and ducting considerably easier. 1,500W HPS replacement.
What you get
- 2,800 µmol/s, 1,000W at 277VAC, 866 µmol/m²/s average PPFD at 12 inches.

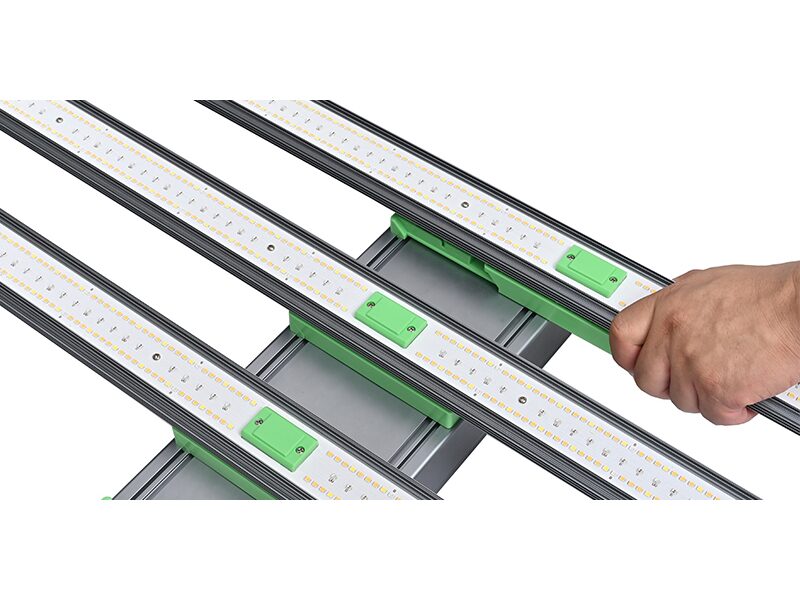

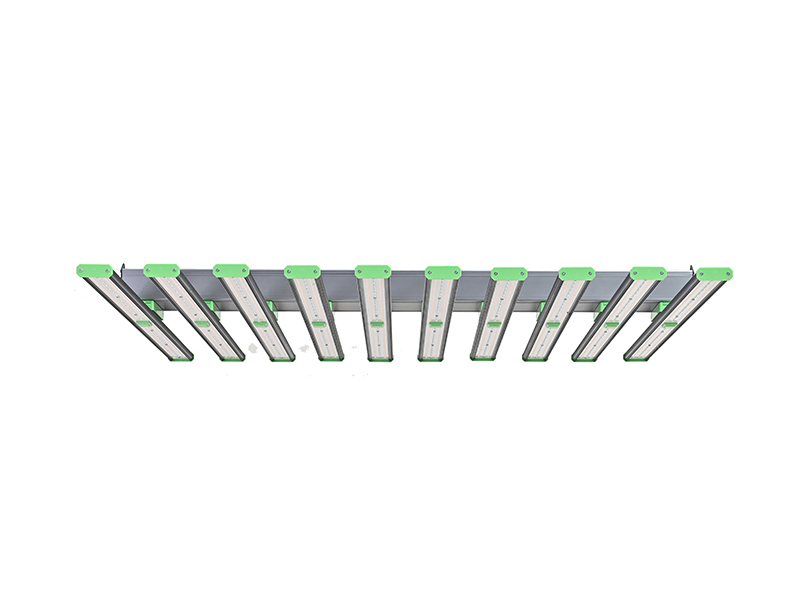

- Flexible-arm frame, 43.3" × 41.7" × 4.3" — bars spread over the bench instead of folding into a panel.
- Three-channel control of UV (395nm), IR and deep red (660/730nm) and the white/blue base, dimmable 0-100%.
- 4ft × 6ft flowering, 5ft × 7ft vegetative coverage, 120° beam.
- 120-277VAC or 277-480VAC, 3.8A at 277V, power factor above 0.95.
- Passive thermal management to 40°C ambient; IP65, flicker-free, damp-location rated.

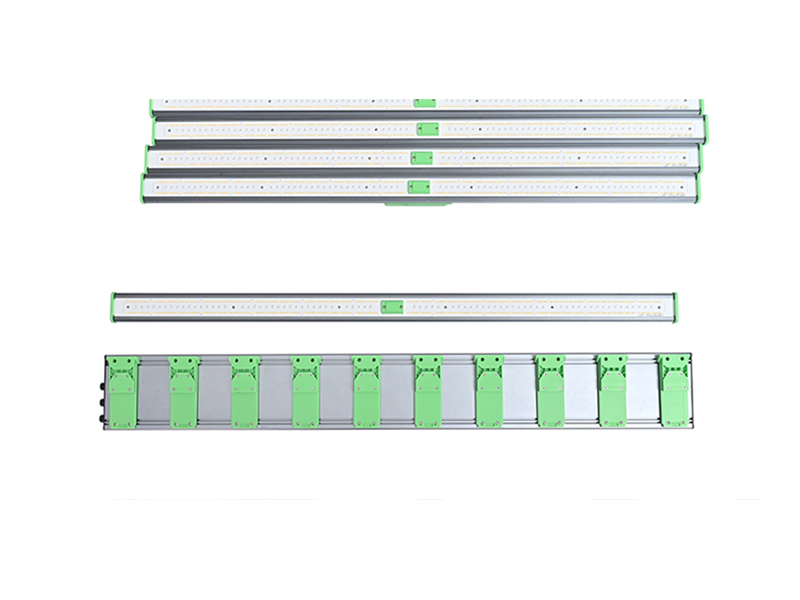

- Compact freight: 1150 × 250 × 290mm, 21.16kg gross — arms fold in, so it ships in a smaller carton than the panel-style fixtures.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

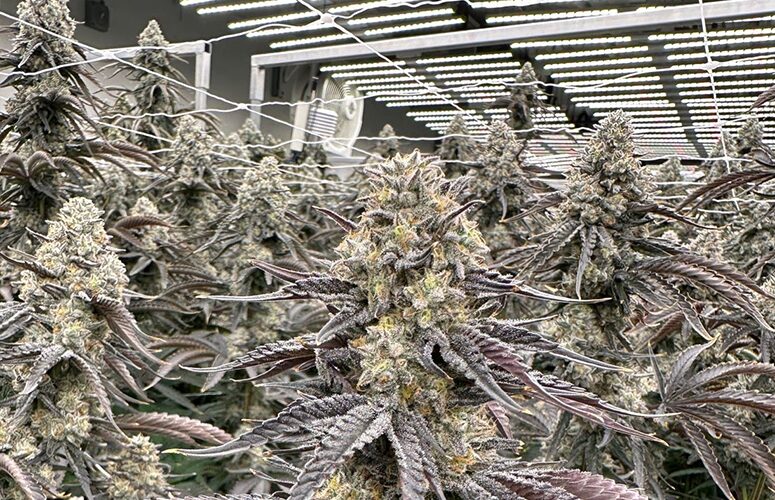

Over a commercial flowering bench
Installed in a working commercial grow. Rated coverage: Flower 4ft x 6ft; Veg 5ft x 7ft.

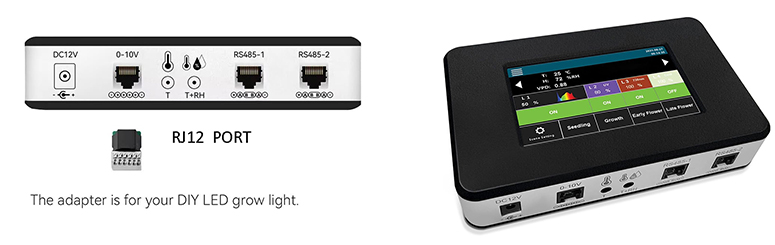

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| TR 1000W PRO | 1000 W | 2,800 µmol/s | 4ft x 6ft | 866 µmol/m²/s | this page |
| TR 720W PRO | 720 W | 2,016 µmol/s | 4ft x 4ft | 624 µmol/m²/s | View → |
Specifications
- Power
- 1000 W
- PPF
- 2,800 µmol/s
- Spectrum
- Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV
- Control channels
- 3
- Coverage
- Flower 4ft x 6ft; Veg 5ft x 7ft
- Input voltage
- 120-277VAC / 277-480VAC, 50/60Hz (rated input 110-277V)
- Dimming
- 0-100% dimmer knob; three channels (UV / IR+deep-red / white+blue) dimmable independently; RJ12 port for group control
- Dimensions
- 43.3"L x 41.7"W x 4.3"H (1100 x 1060 x 110 mm)
- Weight
- 18.47 kg
- IP rating
- IP65
- Rated lifetime
- 50,000 h
- Warranty
- 5 years standard
Engineering data
- Replaces
- 1500W HPS/MH
- Average PPFD @ 1 ft
- 866 µmol/m²/s
- Centre PPFD @ 1 ft
- 1,140 µmol/m²/s
- Diode brands
- Samsung & Osram
- Diode configuration
- Samsung LM281b, 450nm, 660nm, 730nm and 395nm chips
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- >0.95
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Packing
- 1 pc/carton, L1150 x W250 x H290 mm, 21.16 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 9.2A
- 120Vac 8.4A
- 220Vac 4.7A
- 240Vac 4.3A
- 277Vac 3.8A
PPFD distribution maps available with your quote.
Before you spec it
Why choose the flexible-arm frame over the foldable one?
Clearance and obstructions. The TF 1000W PRO is a 2-inch-deep panel — better where headroom is the binding constraint. The TR is 4.3 inches deep but its arms let you set bar spacing around trellis posts, drip lines and duct runs. In new-build rooms most operators take the TF; in retrofits the TR usually wins.
Does the frame change the light distribution?
The published footprint and PPFD map are the same as the TF at equal wattage — 4ft × 6ft flowering, 866 µmol/m²/s average at 12 inches. What changes is how much freedom you have to position bars around the hardware already in the room.
TR 1000W PRO or DR 1060W PLUS?
Both are flexible-arm fixtures at nearly the same output — 2,800 against 2,968 µmol/s — over the same 4ft × 6ft footprint. The deciding factor is channel count: the TR has three channels with UV separated from far-red, the DR 1060W PLUS has two, with UV and far-red on a shared dimmer. Take the DR if you will always move them together.
What about the smaller TR?
The TR 720W PRO is the same frame and control scheme at 2,016 µmol/s over 4ft × 4ft.
