DR 1060W PLUS
High-output full-spectrum + UV/IR, 2-channel control
Factory-direct pricing. Send your room size and target PPFD for a layout recommendation with the quote.
- Photon flux (PPF)
- 2,968 µmol/s
- Input power
- 1060 W
- Flowering footprint
- 4ft x 6ft
- Ingress protection
- IP44
What we measured
The three artifacts a lighting plan is actually drawn from. Every figure below comes off our own spec sheet; where we do not have a measurement, the page says so instead of estimating.
Coverage & PPFD
Rated flowering footprint, 4 × 6 ft. Both readings are µmol/m²/s measured 1 ft from canopy (mounting range 6-24 in). The shading illustrates centre-to-edge falloff; it is not a measured grid. A full PPFD map at your mounting height comes with the quote.

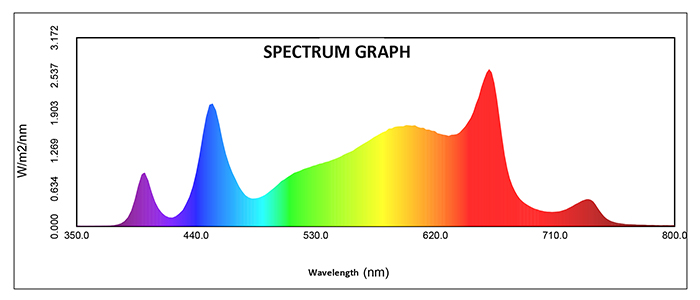

2-channel spectrum
Full spectrum white (Samsung LM281B) + 450nm blue + 660nm deep red + 730nm far-red + 395nm UV. Each channel dims on its own — at the fixture or over group control.
Download the full spec sheet (PDF)What the DR 1060W PLUS is for
Two-channel control on a detachable-bar frame, sized for a 4ft × 6ft flowering bench. 2,968 µmol/s — slightly more output than the three-channel TR at the same footprint, with UV and far-red combined on a single dimmer. The straightforward choice for production rooms that run one spectrum recipe and want fewer variables on the floor.
What you get
- 2,968 µmol/s, 1,060W at 277VAC, 866 µmol/m²/s average PPFD at 12 inches.

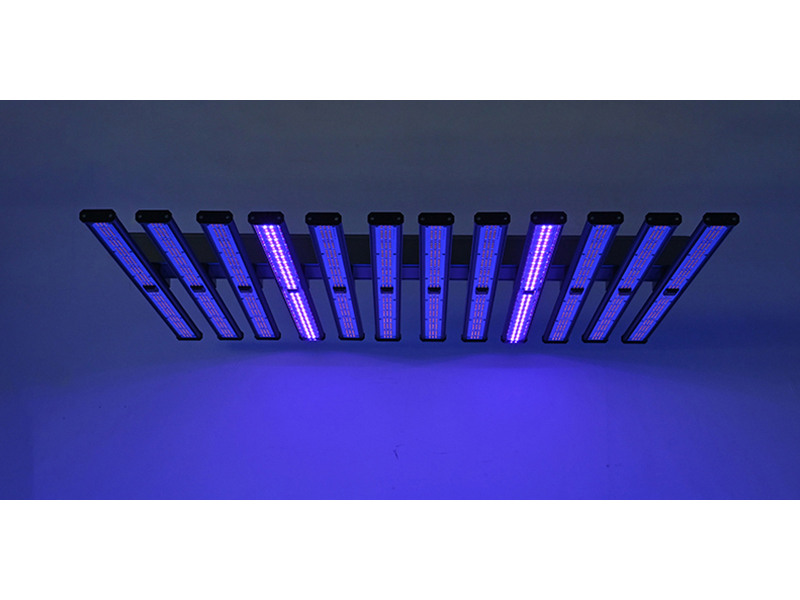

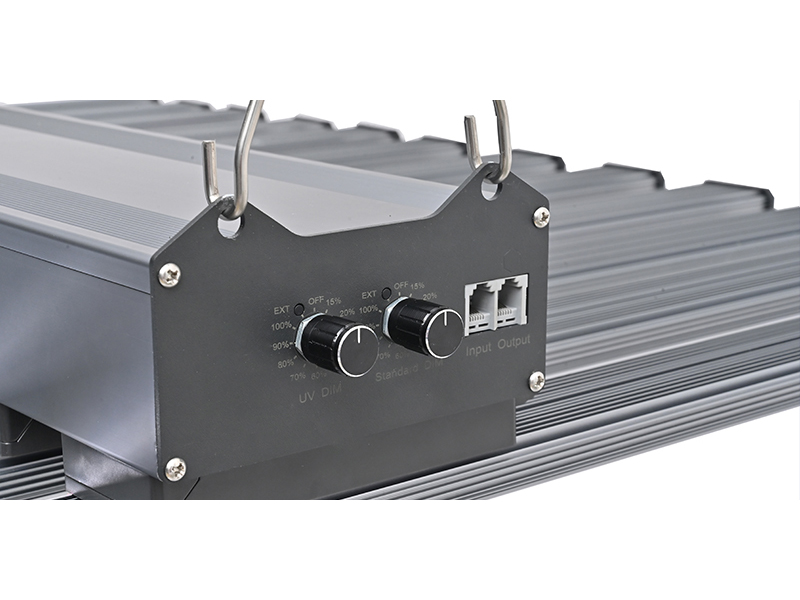

- Two-channel control: full spectrum on one channel, UV + IR on the other, both dimmable 0-100%.
- 4ft × 6ft flowering, 5ft × 7ft vegetative coverage, 120° beam, 1,590W HPS replacement.

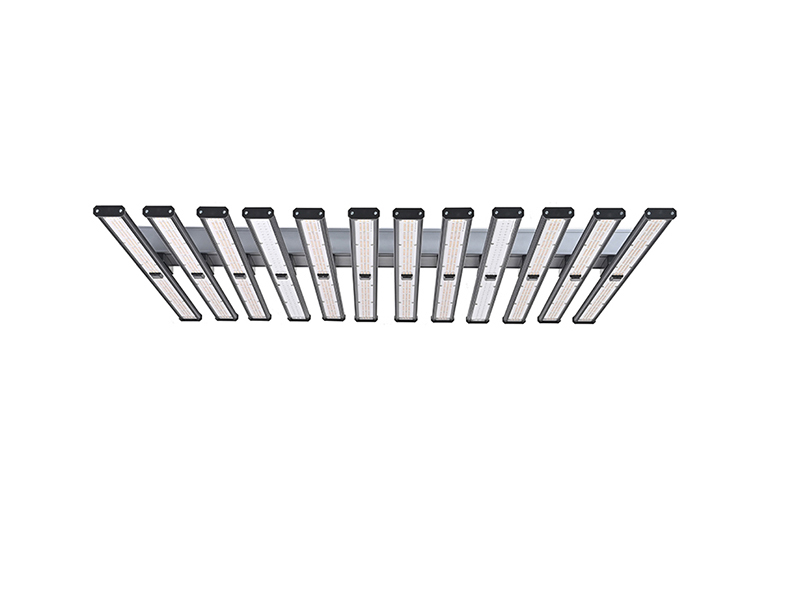

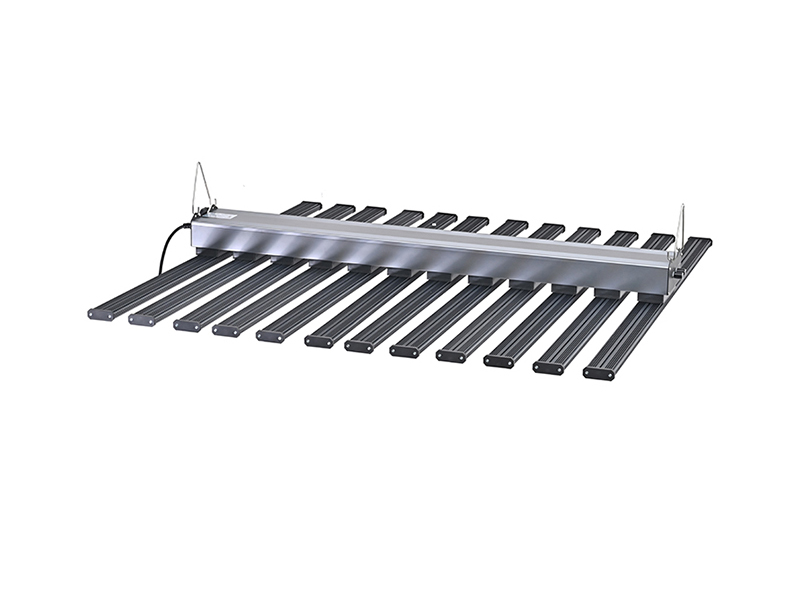

- Detachable bars on a 1120 × 1040 × 130 mm frame, 14.54 kg — bars come off for shipping and for working around trellis and irrigation.
- Deep-red-weighted vegetative spectrum, shared with the DR 1500W PLUS.

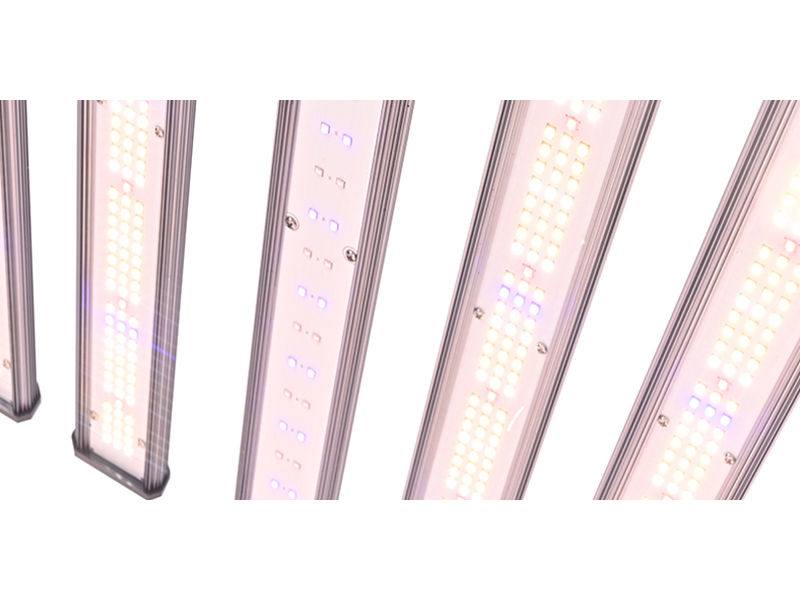

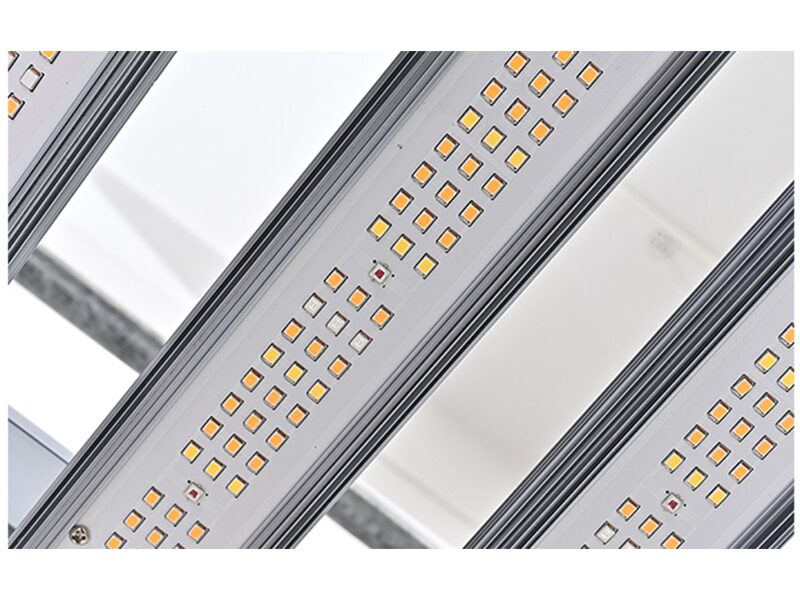

- 4,130 diodes: Samsung LM281B full spectrum with 660nm deep red, UV and IR. AC 110-277V, UL-listed driver, power factor at or above 0.95.
- Passive cooling to 40°C ambient; IP44, flicker-free.
- Five-year standard warranty, L90 beyond 50,000 hours.
What it looks like in use

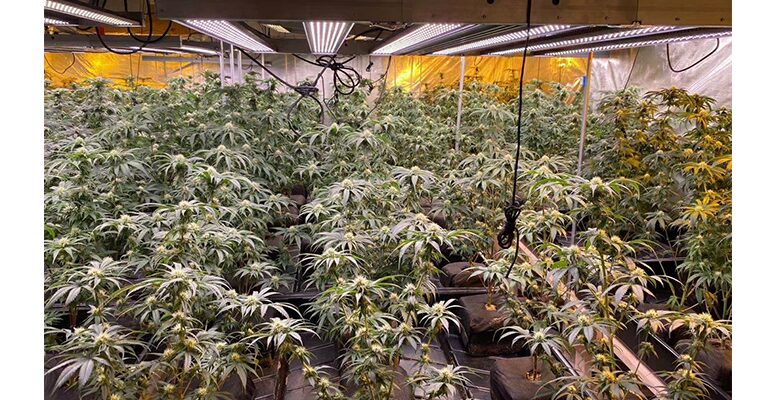

Over a commercial flowering bench
Installed in a working commercial grow. Rated coverage: Flower 4ft x 6ft; Veg 5ft x 7ft.

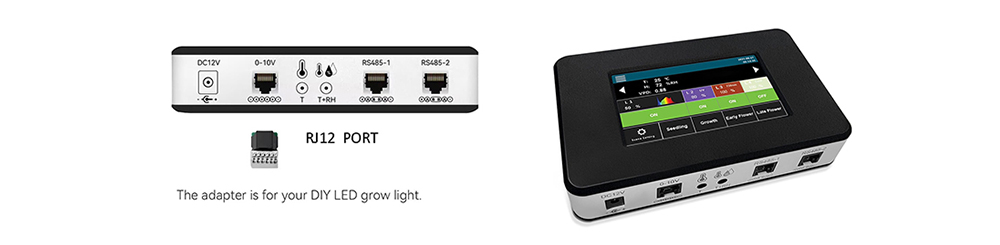

GC001 touchscreen
Schedules, per-channel levels, and live temperature, humidity and VPD — one controller runs up to 100 fixtures over RJ12.
Choose your model
| Model | Power | PPF | Flowering footprint | Avg PPFD @ 1 ft | |
|---|---|---|---|---|---|
| DR 1500W PLUS | 1500 W | 4,200 µmol/s | 4ft x 7ft | 1,225 µmol/m²/s | View → |
| DR 1060W PLUS | 1060 W | 2,968 µmol/s | 4ft x 6ft | 866 µmol/m²/s | this page |
Specifications
- Factory model
- LH-DX412-1060
- Power
- 1060 W
- PPF
- 2,968 µmol/s
- Spectrum
- Full spectrum (Samsung LM281B) + 660nm deep red + UV + IR
- Control channels
- 2
- Coverage
- Flower 4ft x 6ft; Veg 5ft x 7ft
- Input voltage
- AC 110-277V
- Dimming

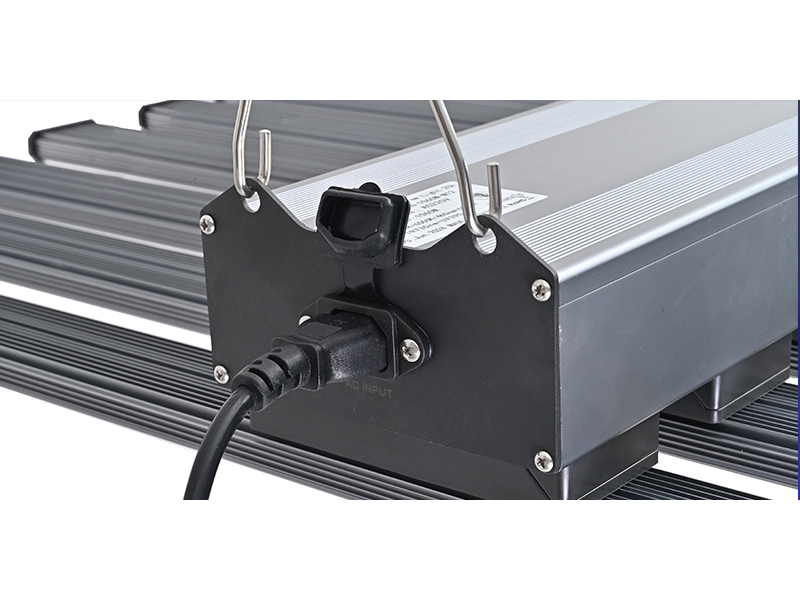

- Two independent channels: full spectrum / UV + IR; RJ12 port for group control
- Dimensions
- 1120 x 1040 x 130 mm
- Weight
- 14.54 kg
- IP rating
- IP44
- Rated lifetime
- 50,000 h
- Warranty
- 5 years
Engineering data
- Replaces
- 1590W HPS/MH
- Average PPFD @ 1 ft
- 866 µmol/m²/s
- Centre PPFD @ 1 ft
- 1,140 µmol/m²/s
- Diode brands
- Samsung LM281B + 660nm + UV + IR
- Diode count
- 4130 pcs
- Beam angle
- 120 deg
- Mounting height
- 6-24 in
- Thermal management
- Passive
- Max ambient
- 40 °C
- Power factor
- ≥ 0.95
- Driver
- UL-listed driver
- Ratings
- Flicker-free, damp-location, dimmable, IP65
- Form factor
- Detachable bars
- Packing
- 1 pc/carton, 1150 x 250 x 290 mm, 16.06 kg gross
Current draw by supply voltage
What the circuit is sized from when you plan how many fixtures share a breaker.
- 110Vac 9.2A
- 120Vac 8.4A
- 220Vac 4.7A
- 240Vac 4.3A
- 277Vac 3.8A
PPFD distribution maps available with your quote.
Before you spec it
DR 1060W PLUS or TR 1000W PRO?
Same frame, same 4ft × 6ft bench, near-identical output — 2,968 against 2,800 µmol/s. The only real difference is channels: two here, three on the TR 1000W PRO. Take the TR if you want UV dosed independently of far-red; take the DR if they always move together and you would rather have the extra 168 µmol/s.
When does the two-channel fixture make more sense than three?
At scale, with a settled recipe. Every additional channel is another parameter per zone to schedule, audit and get wrong. Facilities that have finished their spectrum trials and are replicating a proven cycle across many rooms generally standardise on two channels.
How does it pair with the larger DR?
DR 1500W PLUS covers 4ft × 7ft at 4,200 µmol/s and reaches a 1,225 µmol/m²/s canopy average. Mixing the two across bench sizes keeps one control scheme and one spare-parts list across the room.
Does it need under-canopy support?
At 866 µmol/m²/s average over a 4ft × 6ft bench, lower-canopy light is the usual limit on a dense flower crop. The UC120 under-canopy bar is designed for that job and runs from the same controller.
